The boom of the XGC55 crawler crane is made of high-strength seamless steel pipes as chord and belly tubes, supplemented by high-strength steel plates welded in sections to form a four-chord space truss structure with equal cross-sections in the middle and variable cross-sections at both ends. With the help of precise finite element analysis and calculation, the potential of the boom is fully utilized and the lifting capacity is greatly improved.
Main Boom Specifications:
Fixed Jib Specifications:
Single Pulley at Arm End:
The luffing is mainly done by cables, supplemented by plates. The cables are made of mature process structures, which are safe and reliable; the plates are made of high-strength steel plates cut and formed in one go, without welding, with few manufacturing defects and high safety factor.
The turntable is the key bearing structure for connecting the upper and lower vehicles. The main load-bearing structure adopts a flat box structure welded from high-strength steel plates. The cantilever structures on both sides are welded to increase the space of the whole machine for arranging fixed loads.

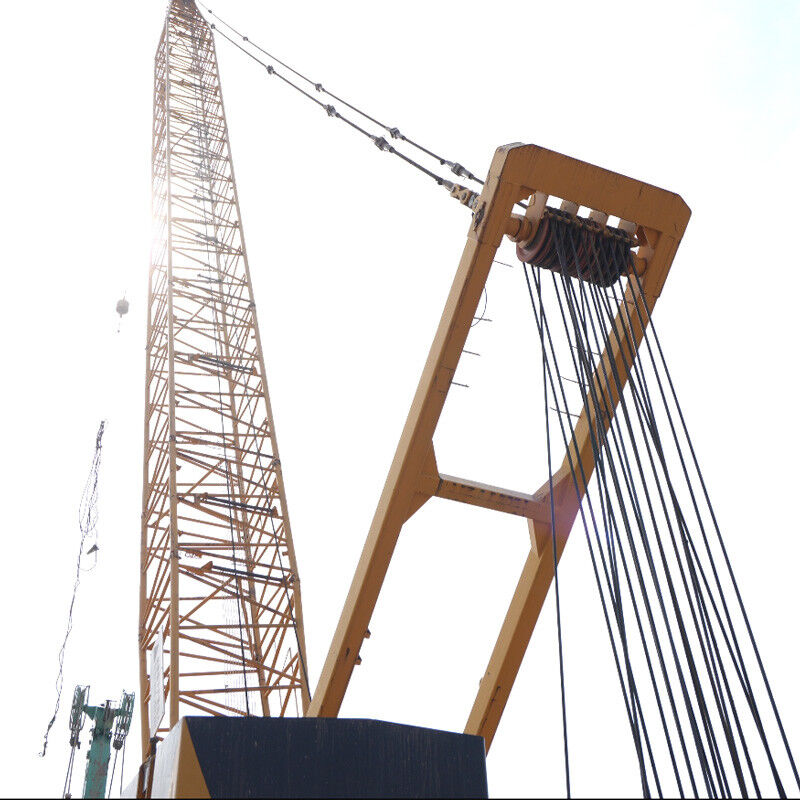

The herringbone frame is composed of a double-limb structure with a reinforced crossbeam between the two limbs, which has good stability. The main structure is made of high-quality seamless steel pipe, which effectively reduces the amount of welding, has few manufacturing defects, and has a high safety factor.
| No. | Mechanism Name | Usage | Layout Location |
|---|---|---|---|
| 1 | Main lifting mechanism | Main boom operation | Center-front direction of the turntable |
| 2 | Auxiliary lifting mechanism | Fixed jib, single pulley lifting operation at the arm end | Turntable middle |
| 3 | Luffing mechanism | Main boom luffing | Behind the turntable |
| 4 | Slewing mechanism | Crane slewing | Front of turntable |
| 5 | Traveling mechanism | Machine traveling | Crawler drive wheel |
The lifting mechanism includes the main lifting mechanism and the auxiliary lifting mechanism, driven by a planetary gear reducer driven by a quantitative motor. The main hook or auxiliary hook is lifted and lowered through the drum and pulley set.
Key Features:
Main Hoisting Mechanism:
Auxiliary Hoisting Mechanism:
