| Brand Name: | XCMG |
| Model Number: | XGC100A |
| MOQ: | One Crane |
| Price: | 200,000-6,000,000 RMB per unit |
| Payment Terms: | L/C,T/T |
| Supply Ability: | Supply According to Customer Needs |

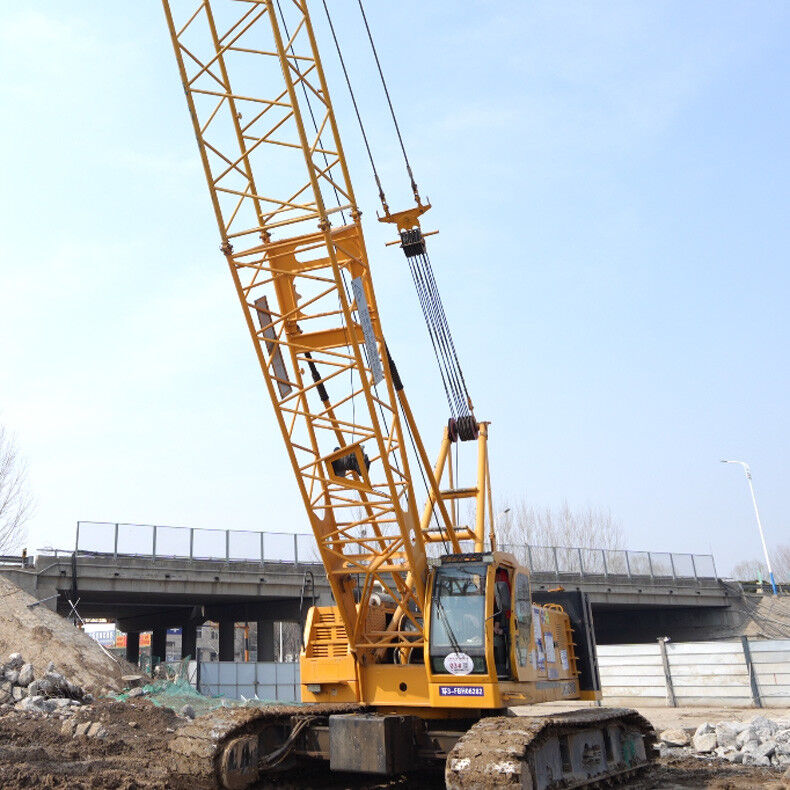

The XGC100A crawler crane is a robust 100-ton capacity machine specifically designed for demanding bridge construction projects, offering reliable performance in heavy lifting operations.
The crane's optimized structure consists of the following key mechanisms:
| No. | Mechanism Name | Usage | Layout Location |
|---|---|---|---|
| 1 | Main lifting mechanism | Main boom operation | Center-front direction of the turntable |
| 2 | Auxiliary lifting mechanism | Fixed jib, single pulley lifting operation | Turntable middle |
| 3 | Luffing mechanism | Main boom luffing | Behind the turntable |
| 4 | Slewing mechanism | Crane slewing | Front of turntable |
| 5 | Traveling mechanism | Machine traveling | Crawler drive wheel |
The crane features both main and auxiliary lifting mechanisms with advanced technical specifications:
Main Hoisting: Uses left-handed anti-rotation steel wire rope with independent steel core (8t rated tension, φ22mm diameter, 240m length).
Auxiliary Hoisting: Features high breaking tension steel wire rope (8t rated tension, φ22mm diameter, 155m length).
The luffing system provides precise boom angle control with these features:
