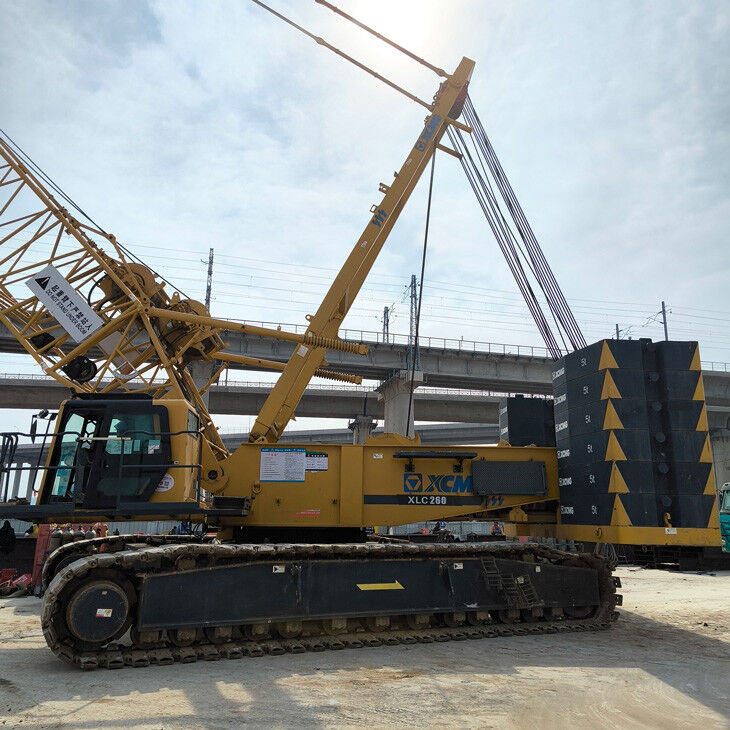

Hydraulic 260T Mobile Crawler Crane XLC260 80km/H Travel Speed

Name: Hydraulic 260T Mobile Crawler Crane XLC260 80km/H Travel Speed
Brand: Shandong Tengfei Hoisting Engineering Co., Ltd.
SKU: XLC260
Price: 103.00 USD
Availability: InStock

Brand Name:	XCMG
Model Number:	XLC260
MOQ:	One Crane
Price:	200,000-6,000,000 RMB per unit
Payment Terms:	L/C,T/T
Supply Ability:	Supply According to Customer Needs

Detail Information

Product Description

Detail Information

Place of Origin:

China

Boom Length:

80 Meters

Maximum Outrigger Span:

8 Meters

Hoisting Speed:

10 Meters Per Minute

Maximum Lifting Height:

120 Meters

Counterweight:

100 Tons

Maximum Working Radius:

60 Meters

Control System:

Hydraulic

Maximum Working Height:

150 Meters

Type:

Crawler Crane

Maximum Lifting Capacity:

260 Tons

Slewing Speed:

2.5 Revolutions Per Minute

Safety Features:

Load Moment Limiter, Anti-Tip Over System

Engine Power:

500 KW

Maximum Travel Speed:

80 Km/h

Packaging Details:

Packing According to Customer Requirements

Highlight:

260t mobile crawler crane

mobile crawler crane xlc260

hydraulic crawler telescopic crane

Product Description

Hydraulic 260T Mobile Crawler Crane XLC260 80km/H Travel Speed

260T Crawler Crane For Port Construction Applications

This high-capacity crawler crane delivers exceptional lifting performance for demanding port construction projects and other heavy-duty applications.

XLC260 Crawler Crane Technical Specifications

Crawler crane models: XLC260

Max rated lifting capacity: 260t

Max lifting moment: 1430t.m

Main Boom Working Conditions - Characteristics of Main Boom Hook with Boom End Pulley Auxiliary Hook (HBS/1)

Main Boom Working Condition HBS/1 - 85t+30t Main Boom Main Hook Performance

Operating Radius (m)	56m	59m	62m	65m	68m	71m	74m	77m*	80m*	83m*	86m*
10	111.4	108.2	98
11	100.9	98.7	96.5	87.7	78.5	70.6

The actual lifting capacity must be deducted from the rated lifting capacity in this table by the weight of the hook, sling and wire rope wrapped around the hook and boom head.
The rated load in the table is the value when the load is lifted slowly and steadily on a horizontal hard ground and the non-travel lifting work is performed.
The rated load in the table is based on the calculation value of the main boom section without the tower arm back plate, tower arm guide pulley and arm end single pulley.
The tower arm back plate needs to be removed from each boom section, and the tower arm guide pulley needs to be removed from the top section of the main boom.
The waist rope needs to be used for the combination at the "*" when the main boom length exceeds 74m, and it is recommended to use a wedge to assist the boom when the main boom length exceeds 77m.

Main Boom Working Condition HBS/1 - 75t+30t Main Boom Main Hook Performance

Operating Radius (m)	23m	26m	29m	32m	35m	38m	41m	44m	47m	50m	53m
5.5	242.8
6	217.6	217.6	214.2

The actual lifting capacity must be deducted from the rated lifting capacity in this table by the weight of the hook, sling and wire rope wrapped around the hook and boom head.
The rated load in the table is the value when the load is lifted slowly and steadily on a horizontal hard ground and the non-travel lifting work is performed.
The rated load in the table is based on the calculation value of the main boom section without the tower arm back plate, tower arm guide pulley and arm end single pulley.
The tower arm back plate needs to be removed from each boom section, and the tower arm guide pulley needs to be removed from the top section of the main boom.
The waist rope needs to be used for the combination at the "*" when the main boom length exceeds 74m, and it is recommended to use a wedge to assist the boom when the main boom length exceeds 77m.
