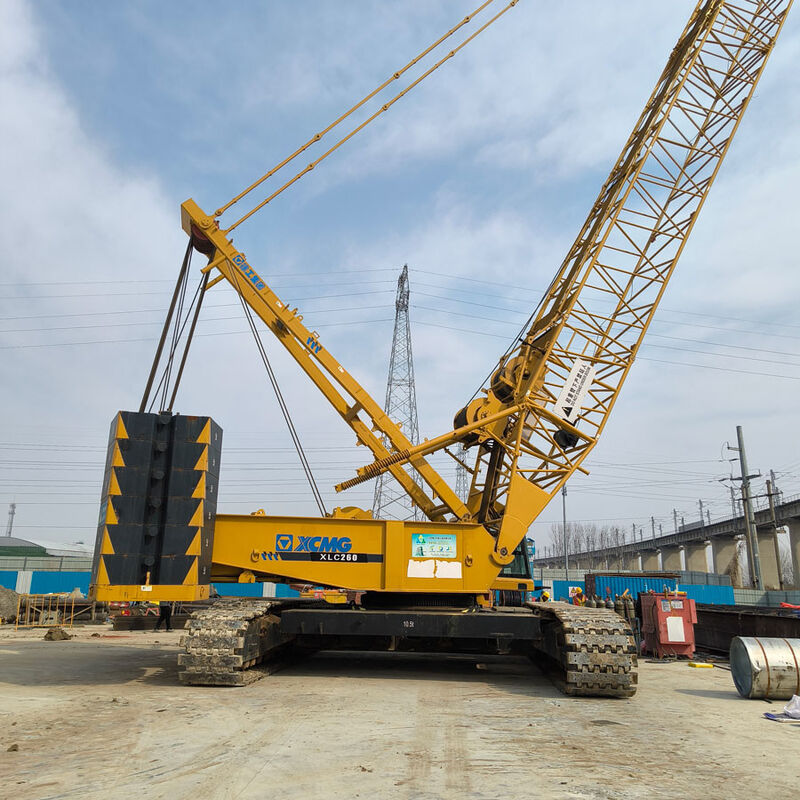

260T Mobile Crawler Crane XLC260 Crawler Mounted Mobile Crane XCMG

Name: 260T Mobile Crawler Crane XLC260 Crawler Mounted Mobile Crane XCMG
Brand: Shandong Tengfei Hoisting Engineering Co., Ltd.
SKU: XLC260
Price: 103.00 USD
Availability: InStock

Brand Name:	XCMG
Model Number:	XLC260
MOQ:	One Crane
Price:	200,000-6,000,000 RMB per unit
Payment Terms:	L/C,T/T
Supply Ability:	Supply According to Customer Needs

Detail Information

Product Description

Detail Information

Place of Origin:

China

Maximum Tip Height:

188 Meters

Maximum Lifting Capacity:

260 Tons

Boom Length:

100 Meters

Jib Length:

126 Meters

Drive System:

8x8x8

Maximum Counterweight:

200 Tons

Engine Power:

680 KW

Maximum Travel Speed:

85 Km/h

Packaging Details:

Packing According to Customer Requirements

Highlight:

260T Mobile Crawler Crane

Mobile Crawler Crane XLC260

Crawler Mounted Mobile Crane XCMG

Product Description

260T Crawler Mobile Cranes for Petroleum and Chemical Equipment Lifting

XLC260 Crawler Crane Technical Specifications

Crawler crane models: XLC260

Max rated lifting capacity: 260t

Max lifting moment: 1430t.m

Tower Jib Working Condition

Main Boom Section Combination

Name and quantity	Main boom length	Main boom bottom section 9m	Intermediate section 3mA	Intermediate section 6mA	Intermediate section 12mA	Intermediate section 6mB	Intermediate section 12mB
HB23	1	1	0	0	1	0	1
HB26	1	0	1	0	1	0	1
HB29	1	1	1	0	1	0	1
HB32	1	0	0	1	1	0	1
HB35	1	1	0	1	1	0	1
HB38	1	0	1	1	1	0	1
HB41	1	1	1	1	1	0	1
HB44	1	0	0	2	1	0	1
HB47	1	1	0	2	1	0	1
HB50	1	0	1	2	1	0	1
HB53	1	1	1	2	1	0	1
HB56	1	0	0	2	1	1	1

Jib Section Combination for Tower Jib Working Condition

Name and quantity	Jib length	Tower boom bottom section 1.5m	Intermediate section 3mB	Intermediate section 6mB	Intermediate section 12mB	Tower boom transition section 4.5m	Intermediate section 3mC	Intermediate section 6mC	Intermediate section 12mC
W18	1	1	1	0	1	0	0	0	1
W21	1	1	1	0	1	1	0	0	1
W24	1	1	1	0	1	0	1	0	1
W27	1	1	0	1	1	1	0	0	1
W30	1	1	1	1	1	0	0	0	1
W33	1	1	1	1	1	1	0	0	1
W36	1	1	1	1	1	0	1	0	1
W39	1	1	1	1	1	1	1	0	1
W42	1	1	1	1	1	0	0	1	1
W45	1	1	1	1	1	1	0	1	1
W48	1	1	1	1	1	0	1	1	1
*W51	1	1	1	1	1	1	1	1	1
*W54	1	1	1	1	1	0	0	2	1
*W57	1	1	1	1	1	1	0	2	1
*W60	1	1	1	1	1	0	1	2	1
*W63	1	1	1	1	1	1	1	2	1

Notes:

"*" tower arm length requires the use of waist rope.
Each boom section needs to be installed with a tower arm back plate, and the top section of the main boom needs to be installed with a tower arm guide pulley.
When the combined length of the main boom + tower arm exceeds 71m, it is recommended to use an inclined wedge to assist the arm raising.

Tower Jib Working Condition (HW) Jib Raising Table (Counterweight Combination 85t+30t)

Main Boom	Tower Jib	HB23	HB26	HB29	HB32	HB35	HB38	HB41	HB44	HB47	HB50	HB53
W18	●	●	●	●	●	●	●	●	●	●	●	●
W21	●	●	●	●	●	●	●	●	●	●	●	●
W24	●	●	●	●	●	●	●	●	●	●	●	●
W27	●	●	●	●	●	●	●	●	●	●	●	●
W30	●	●	●	●	●	●	●	●	●	●	●	●
W33	●	●	●	●	●	●	●	●	●	●	●	●
W36	●	●	●	●	●	●	●	●	●	●	●	●
W39	●	●	●	●	●	●	●	●	●	●	●	●
W42	●	●	●	●	●	●	●	●	●	●	●	●
W45	●	●	●	●	●	●	●	●	●	●	●	×
W48	●	●	●	●	●	●	●	●	●	●	●	×
*W51	●	●	●	●	●	●	●	●	●	●	●	×
*W54	●	●	●	●	●	●	●	●	●	●	●	×
*W57	●	●	●	●	●	●	●	●	●	●	●	×
*W60	●	●	●	●	●	●	●	●	●	●	●	×
*W63	●	●	●	●	●	●	●	●	●	●	×	×

Notes:

When raising the boom, please place the track drive wheel behind the vehicle body.
"●" - the boom can be raised, "×" - the boom cannot be raised, and the working condition cannot be used.
"*" - the tower jib length requires a waist rope.
For the combination of the main boom and the tower jib with a total length of more than 71m, if conditions permit, it is recommended to use a wedge to assist the boom raising to ensure safer raising and lowering of the boom.
