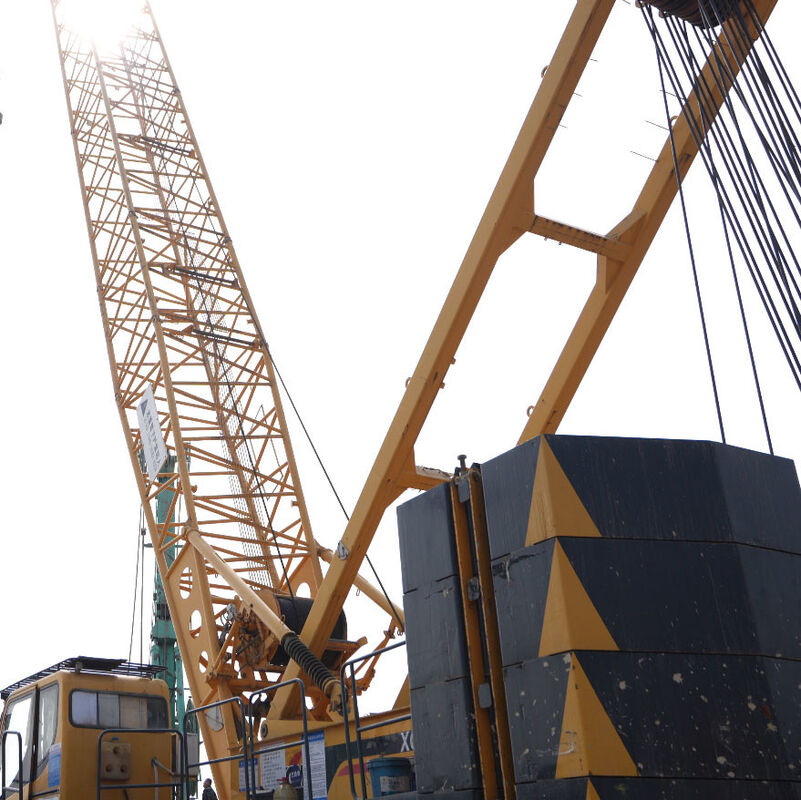

220Ton Construction Crawler Crane Used All Terrain Crawler Mobile Crane

Name: 220Ton Construction Crawler Crane Used All Terrain Crawler Mobile Crane
Brand: Shandong Tengfei Hoisting Engineering Co., Ltd.
SKU: XLC220
Price: 103.00 USD
Availability: InStock

Brand Name:	XCMG
Model Number:	XLC220
MOQ:	One Crane
Price:	200,000-6,000,000 RMB per unit
Payment Terms:	L/C,T/T
Supply Ability:	Supply According to Customer Needs

Detail Information

Product Description

Detail Information

Place of Origin:

China

Engine Power:

300 KW

Maximum Lifting Height:

60 Meters

Safety Features:

Load Moment Indicator, Anti-Two Block System

Counterweight System:

Removable

Outrigger System:

Hydraulic

Cab Features:

Air-conditioned, Ergonomic Design

Fuel Type:

Diesel

Type:

All Terrain

Capacity:

220 Tons

Hoist System:

Single Line Pull, Multi-speed

Travel Speed:

80 Km/h

Boom Length:

40 Meters

Packaging Details:

Packing According to Customer Requirements

Highlight:

220Ton Construction Crawler Crane

Construction Crawler Crane Used

All Terrain Crawler Mobile Crane

Product Description

All Terrain Safe 220T Construction Crawler Crane Easy To Complete Lifting Tasks

Safe Operation, Easy To Use 220T Crawler Crane, Easy To Complete Lifting Tasks

XLC220 Crawler Crane Technical Specifications

Crawler crane models: XLC220

Max rated lifting capacity: 220t

Max lifting moment: 1239t.m

Typical working conditions

C.Main boom working condition lifting table

Table of main boom working condition without arm end pulley (HB/1)
HB/1	Counterweight combination: turntable counterweight(t)+ vehicle body counterweight(t)
Main boom assembly	75+21	65+21	55+21
HB17	◎	◎	◎
HB20	◎	◎	◎
HB23	◎	◎	◎
HB26	◎	◎	◎
HB29	◎	◎	◎
HB32	◎	◎	◎
HB35	◎	◎	◎
HB38	◎	◎	◎
HB41	◎	◎	◎
HB44	◎	◎	◎
HB47	◎	◎	◎
HB50	◎	◎	◎
HB53	◎	◎	◎
HB56	◎	◎	◎
HB59	◎	◎	◎
HB62	◎	◎	◎
HB65	◎	◎	◎
HB68	◎	◎	◎
*HB71	◎	◎	◎
*HB74	◎	◎	◎
*HB77	◎	◎	◎
*HB80	◎	◎	●
*HB83	◎	●	×

"◎"--Can raise the arm. "●"--Need to use wedges to assist in raising the arm. "×"--Cannot raise the arm, not allowed to use.
"*" The main arm combination requires the use of a waist rope.
When raising the arm, please place the crawler drive wheel behind the vehicle body.

Boom lifting table with boom end pulley (HBS/1 & HBS/2)

HBS/1 & HBS/2	Counterweight combination: turntable counterweight(t) + vehicle body counterweight(t)
Main boom assembly	75+21	65+21	55+21
HB17	◎	◎	◎
HB20	◎	◎	◎
HB23	◎	◎	◎
HB26	◎	◎	◎
HB29	◎	◎	◎
HB32	◎	◎	◎
HB35	◎	◎	◎
HB38	◎	◎	◎
HB41	◎	◎	◎
HB44	◎	◎	◎
HB47	◎	◎	◎
HB50	◎	◎	◎
HB53	◎	◎	◎
HB56	◎	◎	◎
HB59	◎	◎	◎
HB62	◎	◎	◎
HB65	◎	◎	◎
HB68	◎	◎	◎
*HB71	◎	◎	◎
*HB74	◎	◎	●
*HB77	◎	◎	×
*HB80	◎	●	×
*HB83	◎	×	×

"◎"--Can raise the arm. "●"--Need to use wedges to assist in raising the arm. "×"--Cannot raise the arm, not allowed to use.
"*" The main arm combination requires a 1.33m waist rope.
When raising the arm, please place the crawler drive wheel behind the vehicle body.
