| Brand Name: | XCMG |
| Model Number: | XGC85 |
| MOQ: | One Crane |
| Price: | 200,000-6,000,000 RMB per unit |
| Payment Terms: | L/C,T/T |
| Supply Ability: | Supply According to Customer Needs |

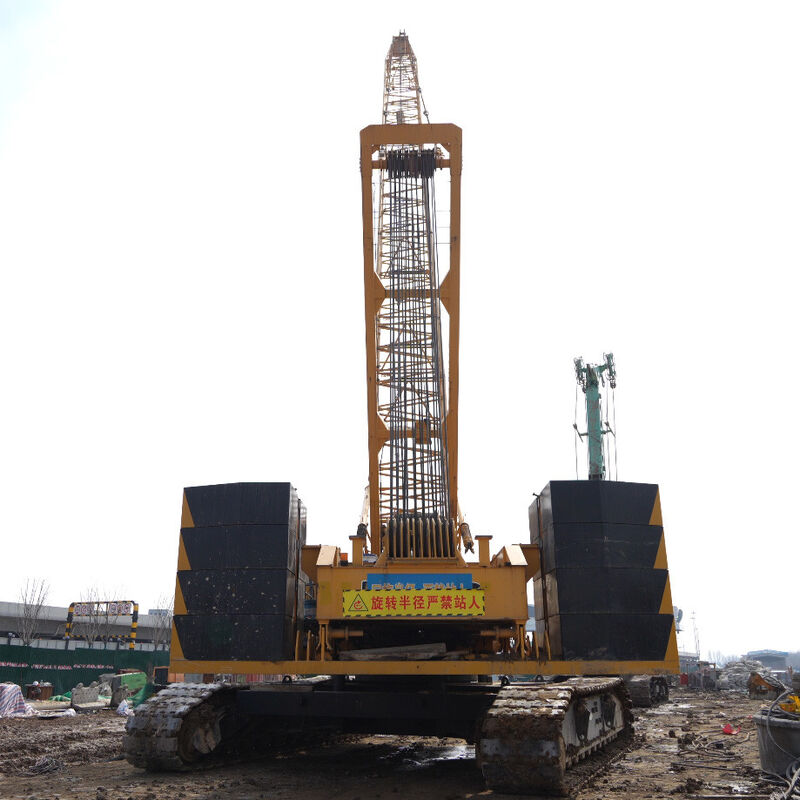

The XGC85 Crawler Crane delivers exceptional walking performance and stability, making it ideal for various construction environments and challenging job sites.
| Range (m) | Fixed Jib Length (m) | |||||||||
|---|---|---|---|---|---|---|---|---|---|---|
| 7 | 10 | 13 | 16 | 19 | ||||||
| 10° | 30° | 10° | 30° | 10° | 30° | 10° | 30° | 10° | 30° | |
| 10 | 12.0 | |||||||||
| 12 | 12.0 | 9.5 | 8.0 | 7.3 | ||||||
| 14 | 12.0 | 9.3 | 8.0 | 6.5 | 7.0 | 5.4 | 4.2 | |||
| 16 | 11.8 | 9.1 | 8.0 | 6.3 | 6.6 | 4.9 | 5.2 | 4.0 | ||
| 18 | 10.9 | 8.9 | 8.0 | 6.1 | 6.4 | 4.8 | 4.9 | 3.7 | 3.8 | |
| 20 | 9.4 | 8.8 | 7.7 | 6.0 | 6.1 | 4.4 | 4.7 | 3.6 | 3.6 | 2.6 |
| 22 | 8.1 | 8.3 | 7.4 | 5.9 | 5.9 | 4.3 | 4.5 | 3.5 | 3.4 | 2.5 |
| 24 | 7.1 | 7.3 | 7.2 | 5.7 | 5.7 | 4.2 | 4.3 | 3.4 | 3.2 | 2.4 |
| 26 | 6.3 | 6.4 | 6.4 | 5.3 | 5.5 | 4.1 | 4.2 | 3.3 | 3.1 | 2.4 |
| 28 | 5.6 | 5.7 | 5.7 | 5.2 | 5.0 | 4.0 | 4.0 | 3.2 | 2.9 | 2.3 |
| 30 | 5.0 | 5.1 | 5.1 | 5.1 | 4.9 | 3.9 | 3.8 | 3.1 | 2.8 | 2.2 |
| 32 | 4.5 | 4.6 | 4.6 | 4.7 | 4.7 | 3.9 | 3.7 | 3.0 | 2.7 | 2.1 |
| 34 | 4.1 | 4.1 | 4.1 | 4.2 | 4.2 | 3.8 | 3.5 | 2.9 | 2.6 | 2.1 |
| 36 | 3.7 | 3.7 | 3.7 | 3.8 | 3.8 | 3.8 | 3.4 | 2.9 | 2.5 | 2.0 |
| 38 | 3.3 | 3.3 | 3.4 | 3.4 | 3.5 | 3.6 | 3.3 | 2.8 | 2.4 | 2.0 |
| 40 | 3.0 | 3.0 | 3.1 | 3.1 | 3.2 | 3.2 | 3.2 | 2.8 | 2.3 | 1.9 |
| 42 | 2.8 | 2.8 | 2.9 | 2.9 | 2.9 | 2.7 | 2.3 | 1.9 | ||
| 44 | 2.6 | 2.6 | 2.6 | 2.7 | 2.2 | 1.8 | ||||
| 46 | 2.4 | 2.4 | 2.5 | 2.1 | 1.8 | |||||
| 48 | 2.2 | 2.2 | 2.0 | 1.8 | ||||||
| 50 | 2.0 | 1.8 | ||||||||
| 52 | 1.8 | |||||||||
| Range (m) | Fixed Jib Length (m) | |||||||||
|---|---|---|---|---|---|---|---|---|---|---|
| 7 | 10 | 13 | 16 | 19 | ||||||
| 10° | 30° | 10° | 30° | 10° | 30° | 10° | 30° | 10° | 30° | |
| 10 | ||||||||||
| 12 | 8.0 | 8.0 | ||||||||
| 14 | 8.0 | 8.0 | 8.0 | 7.0 | 5.4 | 4.2 | ||||
| 16 | 8.0 | 8.0 | 8.0 | 6.3 | 6.7 | 5.2 | 4.0 | |||
| 18 | 8.0 | 8.0 | 8.0 | 6.2 | 6.4 | 4.9 | 5.0 | 3.8 | ||
| 20 | 8.0 | 8.0 | 7.8 | 6.0 | 6.2 | 4.7 | 4.8 | 3.6 | 3.6 | 2.6 |
| 22 | 8.0 | 8.0 | 7.5 | 5.9 | 6.0 | 4.4 | 4.6 | 3.6 | 3.4 | 2.5 |
| 24 | 7.0 | 7.2 | 7.2 | 5.8 | 5.8 | 4.3 | 4.4 | 3.4 | 3.3 | 2.5 |
| 26 | 6.2 | 6.3 | 6.3 | 5.7 | 5.6 | 4.2 | 4.2 | 3.3 | 3.1 | 2.4 |
| 28 | 5.5 | 5.6 | 5.6 | 5.3 | 5.1 | 4.1 | 4.1 | 3.2 | 3.0 | 2.3 |
| 30 | 4.9 | 5.0 | 5.0 | 5.2 | 5.0 | 4.1 | 3.9 | 3.1 | 2.9 | 2.3 |
| 32 | 4.4 | 4.5 | 4.5 | 4.6 | 4.6 | 4.0 | 3.8 | 3.1 | 2.8 | 2.2 |
| 34 | 3.9 | 4.0 | 4.0 | 4.1 | 4.1 | 3.9 | 3.6 | 3.0 | 2.7 | 2.1 |
| 36 | 3.5 | 3.6 | 3.6 | 3.7 | 3.7 | 3.9 | 3.5 | 2.9 | 2.6 | 2.1 |
| 38 | 3.2 | 3.2 | 3.3 | 3.3 | 3.4 | 3.5 | 3.4 | 2.9 | 2.5 | 2.0 |
| 40 | 2.9 | 2.9 | 2.9 | 3.0 | 3.0 | 3.1 | 3.1 | 2.8 | 2.4 | 2.0 |
| 42 | 2.6 | 2.6 | 2.7 | 2.7 | 2.7 | 2.8 | 2.8 | 2.7 | 2.3 | 1.9 |
| 44 | 2.4 | 2.4 | 2.5 | 2.5 | 2.5 | 2.6 | 2.3 | 1.9 | ||
| 46 | 2.1 | 2.2 | 2.3 | 2.3 | 2.4 | 2.2 | 1.8 | |||
| 48 | 2.0 | 2.0 | 2.1 | 2.1 | 2.1 | 1.8 | ||||
| 50 | 1.9 | 1.9 | 1.9 | 1.8 | ||||||
| 52 | 1.7 | 1.7 | 1.8 | |||||||
| 54 | 1.6 | |||||||||
| Range (m) | Fixed Jib Length (m) | |||||||||
|---|---|---|---|---|---|---|---|---|---|---|
| 7 | 10 | 13 | 16 | 19 | ||||||
| 10° | 30° | 10° | 30° | 10° | 30° | 10° | 30° | 10° | 30° | |
| 11 | 8.0 | |||||||||
| 12 | 8.0 | |||||||||
| 14 | 8.0 | 8.0 | 8.0 | 7.0 | 5.4 | |||||
| 16 | 8.0 | 8.0 | 8.0 | 6.3 | 6.8 | 5.2 | 4.0 | |||
| 18 | 8.0 | 8.0 | 8.0 | 6.2 | 6.5 | 4.8 | 5.0 | 3.9 | ||
| 20 | 8.0 | 8.0 | 7.9 | 6.1 | 6.3 | 4.5 | 4.8 | 3.6 | 3.7 | |
| 22 | 7.9 | 8.0 | 7.6 | 5.9 | 6.1 | 4.4 | 4.6 | 3.6 | 3.5 | 2.6 |
| 24 | 6.9 | 7.0 | 7.0 | 5.8 | 5.8 | 4.3 | 4.5 | 3.5 | 3.3 | 2.5 |
| 26 | 6.0 | 6.2 | 6.2 | 5.7 | 5.7 | 4.2 | 4.3 | 3.4 | 3.2 | 2.4 |
| 28 | 5.3 | 5.5 | 5.5 | 5.3 | 5.2 | 4.1 | 4.2 | 3.3 | 3.1 | 2.3 |
| 30 | 4.7 | 4.8 | 4.8 | 5.0 | 5.0 | 4.0 | 4.0 | 3.2 | 3.0 | 2.3 |
| 32 | 4.2 | 4.3 | 4.3 | 4.5 | 4.4 | 4.0 | 3.9 | 3.1 | 2.8 | 2.2 |
| 34 | 3.8 | 3.8 | 3.9 | 4.0 | 4.0 | 3.9 | 3.7 | 3.0 | 2.7 | 2.2 |
| 36 | 3.4 | 3.4 | 3.5 | 3.6 | 3.6 | 3.7 | 3.6 | 3.0 | 2.6 | 2.1 |
| 38 | 3.0 | 3.1 | 3.1 | 3.2 | 3.2 | 3.3 | 3.2 | 2.9 | 2.6 | 2.0 |
| 40 | 2.7 | 2.7 | 2.8 | 2.8 | 2.9 | 3.0 | 2.9 | 2.8 | 2.5 | 2.0 |
| 42 | 2.4 | 2.4 | 2.5 | 2.5 | 2.6 | 2.7 | 2.6 | 2.8 | 2.4 | 1.9 |
| 44 | 2.1 | 2.1 | 2.2 | 2.3 | 2.3 | 2.4 | 2.4 | 2.5 | 2.3 | 1.9 |
| 46 | 2.0 | 2.0 | 2.1 | 2.1 | 2.1 | 2.2 | 2.1 | 1.9 | ||
| 48 | 1.7 | 1.8 | 1.8 | 1.9 | 1.9 | 2.0 | 1.9 | 1.8 | ||
| 50 | 1.6 | 1.7 | 1.7 | 1.8 | 1.7 | 1.8 | ||||
| 52 | 1.5 | 1.6 | 1.5 | 1.7 | ||||||
| 54 | 1.4 | 1.4 | 1.5 | |||||||
| 56 | 1.2 | 1.3 | ||||||||
