Building Construction Mobile Cranes 260tons Used Crawler Cranes Hydraulic

Name: Building Construction Mobile Cranes 260tons Used Crawler Cranes Hydraulic
Brand: Shandong Tengfei Hoisting Engineering Co., Ltd.
SKU: XLC260
Price: 103.00 USD
Availability: InStock

Brand Name:	XCMG
Model Number:	XLC260
MOQ:	One Crane
Price:	200,000-6,000,000 RMB per unit
Payment Terms:	L/C,T/T
Supply Ability:	Supply According to Customer Needs

Detail Information

Product Description

Detail Information

Place of Origin:

China

Safety Features:

Load Moment Indicator

Boom Length:

50 Meters

Slewing Speed:

2 Rpm

Max Lifting Height:

80 Meters

Outrigger Type:

Hydraulic

Telescopic Boom:

Yes

Type:

All Terrain

Capacity:

260 Tons

Luffing Jib:

Optional

Hoist Speed:

50 M/min

Travel Speed:

80 Km/h

Engine Power:

300 KW

Packaging Details:

Packing According to Customer Requirements

Highlight:

construction mobile cranes

mobile cranes 260tons

260tons used crawler cranes

Product Description

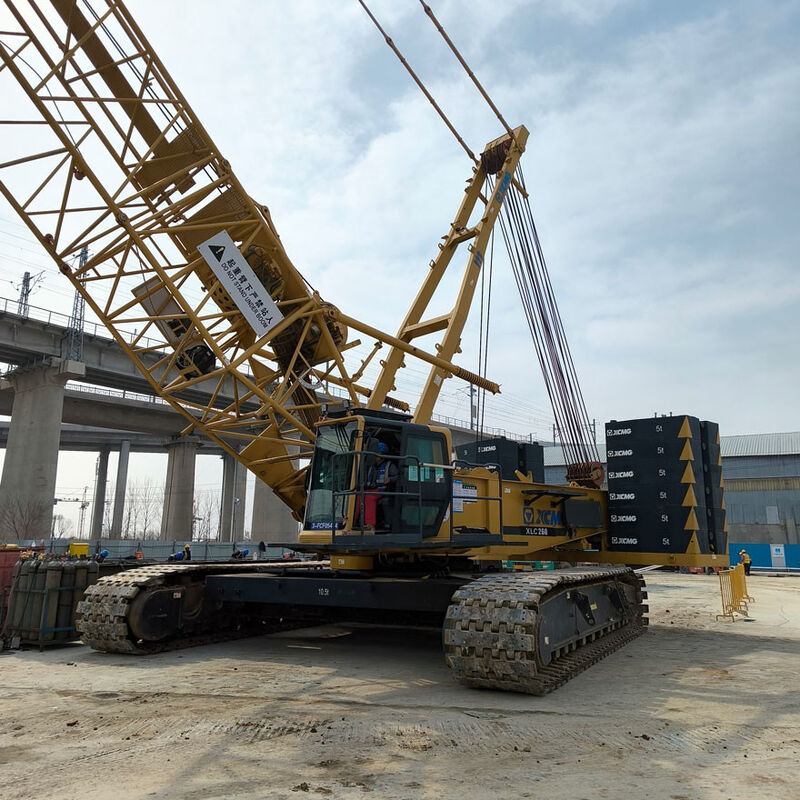

Used 260T Crawler Crane For Prefabricated Building Construction

XLC260 Crawler Crane Technical Specifications

Crawler crane models: XLC260

Max rated lifting capacity: 260t

Max lifting moment: 1430t.m

Main Boom Working Conditions - Characteristics of Main Boom Hook with Boom End Pulley Auxiliary Hook (HBS/1)

75t+30t Main Boom Main Hook Performance with Arm End Pulley Auxiliary Hook

Operating Radius (m)	56m	59m	62m	65m	68m	71m	74m	77m*	80m*	83m*
10	102.5	100.2	97.8

Notes:

The actual lifting capacity must be deducted from the rated lifting capacity in this table by the weight of the hook, sling and wire rope wrapped around the hook and boom head.
The rated load in the table is the value when the load is lifted slowly and steadily on a horizontal hard ground and the non-travel lifting work is performed.
The rated load in the table is based on the calculation value of the main boom section without the tower arm back plate, tower arm guide pulley and arm end single pulley.
The tower arm back plate needs to be removed from each boom section, and the tower arm guide pulley needs to be removed from the top section of the main boom.
The waist rope needs to be used for the combination at the "*" when the main boom length exceeds 74m, and it is recommended to use a wedge to assist the boom when the main boom length exceeds 77m.

65t+30t Main Boom Main Hook Performance with Arm End Pulley Auxiliary Hook

Operating Radius (m)	23m	26m	29m	32m	35m	38m	41m	44m	47m	50m	53m
5.5	230

Notes:

The actual lifting capacity must be deducted from the rated lifting capacity in this table by the weight of the hook, sling and wire rope wrapped around the hook and boom head.
The rated load in the table is the value when the load is lifted slowly and steadily on a horizontal hard ground and the non-travel lifting work is performed.
The rated load in the table is based on the calculation value of the main boom section without the tower arm back plate, tower arm guide pulley and arm end single pulley.
The tower arm back plate needs to be removed from each boom section, and the tower arm guide pulley needs to be removed from the top section of the main boom.
The waist rope needs to be used for the combination at the "*" when the main boom length exceeds 74m, and it is recommended to use a wedge to assist the boom when the main boom length exceeds 77m.
