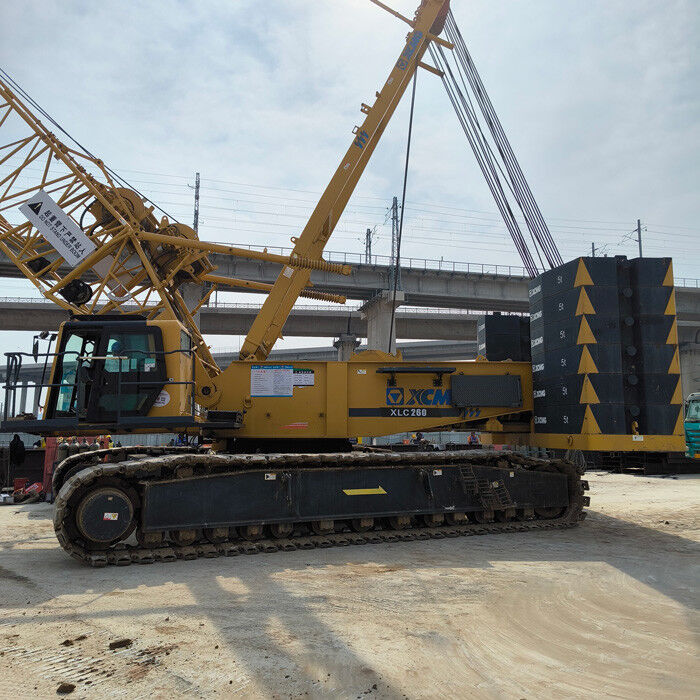

XLC260 Construction Crawler Tower Crane 260T Giant Crawler Cranes 60 km/h

Name: XLC260 Construction Crawler Tower Crane 260T Giant Crawler Cranes 60 km/h
Brand: Shandong Tengfei Hoisting Engineering Co., Ltd.
SKU: XLC260
Price: 103.00 USD
Availability: InStock

Brand Name:	XCMG
Model Number:	XLC260
MOQ:	One Crane
Price:	200,000-6,000,000 RMB per unit
Payment Terms:	L/C,T/T
Supply Ability:	Supply According to Customer Needs

Detail Information

Product Description

Detail Information

Place of Origin:

China

Maximum Lifting Capacity:

260 Tons

Fuel Type:

Diesel

Safety Features:

Load Moment Limiter, Anti-two Block System

Type:

Hydraulic

Cabin:

Fully Enclosed With Air Conditioning

Travel Speed:

60 Km/h

Maximum Lifting Height:

80 Meters

Maximum Working Radius:

40 Meters

Counterweight:

Removable

Boom Length:

50 Meters

Packaging Details:

Packing According to Customer Requirements

Highlight:

construction crawler tower crane

crawler tower crane 260t

giant crawler cranes 60 km/h

Product Description

XLC260 Construction Crawler Tower Crane 260T Giant Crawler Cranes 60 km/h

Improve Construction Efficiency: The 260T Crawler Crane Is Fully Functional And Speeds Up Construction

XLC260 Crawler Crane Technical Specifications

Crawler crane models: XLC260
Max rated lifting capacity: 260t
Max lifting moment: 1430t.m

Main boom working condition_main boom main hook characteristics without arm end pulley (HB/1)

Main boom working condition_No arm end pulley HB/1_65t+30t main boom main hook performance

Operating radius(m)	23	26	29	32	35	38	41	44	47	50	53
5.5	231.8
6	207.9	207.9	207.8
7	172	172	171.8	171.9	171.7	165.7
8	146.4	146.4	146.2	146.2	146	142.3	138	133.9
9	127.2	127.2	127	127	126.8	124.4	121	117.8	114.7	111.7	108.9
10	112.2	112.2	112.1	112.1	111.9	110.4	107.6	105	102.4	99.9	97.6
11	100.3	100.3	100.1	100.2	100	99.1	96.7	94.5	92.4	90.3	88.2
12	90.8	90.8	90.6	90.6	90.4	89.7	87.7	85.9	84	82.2	80.4
13	82.8	82.9	82.8	82.8	82.6	81.9	80.1	78.5	76.9	75.3	73.8
14	74.3	74.4	74.4	74.4	74.4	74.3	73.7	72.3	70.8	69.4	68
15	67.2	67.4	67.3	67.4	67.3	67.2	67.1	66.9	65.5	64.3	63
16	61.3	61.4	61.4	61.5	61.4	61.3	61.2	61.1	60.9	59.8	58.6
17	56.3	56.4	56.3	56.4	56.3	56.2	56.1	56	55.8	55.7	54.8
18	51.9	52	52	52.1	51.9	51.9	51.7	51.6	51.5	51.3	51.1
19	48.1	48.2	48.2	48.3	48.1	48	47.9	47.8	47.6	47.5	47.3
20	44.7	44.9	44.8	44.9	44.8	44.7	44.5	44.4	44.3	44.1	43.9
22		39.2	39.2	39.3	39.2	39.1	38.9	38.8	38.6	38.5	38.2
24		34.6	34.6	34.8	34.6	34.5	34.3	34.3	34.1	33.9	33.7
26			30.8	31	30.9	30.8	30.6	30.5	30.3	30.1	29.9
28				27.8	27.7	27.6	27.4	27.4	27.2	27	26.8
30					25	25	24.8	24.7	24.5	24.3	24.1
32					22.7	22.6	22.5	22.4	22.2	22	21.8
34						20.6	20.4	20.4	20.2	20	19.8
36							18.7	18.6	18.4	18.3	18
38								17.1	16.9	16.7	16.5
40								15.7	15.5	15.3	15.1
42									14.2	14	13.8
44										12.9	12.7
46											11.6

Magnification

24 | 22 | 20 | 18 | 16 | 15 | 14 | 13 | 12 | 11 | 10

The actual lifting capacity must be deducted from the rated lifting capacity in this table by the weight of the hook, sling and wire rope wrapped around the hook and boom head.
The rated load in the table is the value when the load is lifted slowly and steadily on a horizontal hard ground and the non-travel lifting work is performed.
The rated load in the table is based on the calculation value of the main boom section without the tower arm back plate, tower arm guide pulley and arm end single pulley.
The tower arm back plate needs to be removed from each boom section, and the tower arm guide pulley needs to be removed from the top section of the main boom.
The waist rope needs to be used for the combination at the "*" when the main boom length exceeds 74m, and it is recommended to use a wedge to assist the boom when the main boom length exceeds 77m.

Main boom working condition_No arm end pulley HB/1_65t+30t main boom main hook performance

Operating radius(m)	56	59	62	65	68	71	74	77*	80*	83*
10	95.6	93.4	91.2
11	86.6	84.7	82.9	81.1	78.8	71
12	79.1	77.4	75.8	74.2	72.6	69.8	62.8	61.2	56
13	72.6	71.2	69.7	68.3	66.9	65.7	61.8	60.4	55.3	50.8
14	67.1	65.7	64.4	63.2	61.9	60.8	59.6	58.6	54.6	50.1
15	62.2	61	59.8	58.7	57.5	56.5	55.4	54.5	53.5	49.4
16	57.9	56.8	55.8	54.7	53.6	52.7	51.7	50.9	49.9	48.8
17	54.1	53.1	52.2	51.2	50.2	49.4	48.4	47.7	46.7	45.9
18	50.8	49.8	48.9	48	47.1	46.3	45.4	44.8	43.9	43.1
19	47.4	46.8	46	45.1	44.3	43.6	42.7	42.1	41.3	40.6
20	44.1	43.9	43.4	42.5	41.7	41.1	40.3	39.7	38.9	38.3
22	38.4	38.2	38	37.8	37.3	36.7	36	35.5	34.8	34.2
24	33.8	33.6	33.4	33.2	33	32.9	32.4	31.9	31.3	30.7
26	30.1	29.9	29.7	29.4	29.2	29.1	28.8	28.8	28.3	27.8
28	27	26.7	26.5	26.3	26	25.9	25.7	25.6	25.4	25.2
30	24.3	24	23.8	23.6	23.3	23.2	23	22.9	22.7	22.5
32	22	21.7	21.5	21.3	21	20.9	20.6	20.6	20.3	20.2
34	20	19.7	19.5	19.3	19	18.9	18.6	18.6	18.3	18.1
36	18.2	18	17.8	17.5	17.2	17.1	16.9	16.9	16.5	16.4
38	16.6	16.4	16.2	15.9	15.7	15.5	15.3	15.2	15	14.8
40	15.3	15	14.8	14.5	14.3	14.1	13.9	13.8	13.6	13.4
42	14	13.8	13.6	13.3	13	12.9	12.6	12.6	12.3	12.2
44	12.9	12.6	12.4	12.2	11.9	11.8	11.5	11.5	11.2	11
46	11.8	11.6	11.4	11.1	10.9	10.7	10.5	10.4	10.2	10
48	10.9	10.7	10.5	10.2	9.9	9.8	9.5	9.5	9.2	9.1
50	10	9.8	9.6	9.3	9.1	8.9	8.7	8.6	8.4	8.2
52		9	8.8	8.5	8.3	8.2	7.9	7.9	7.6	7.4
54			8.1	7.8	7.6	7.4	7.2	7.1	6.9	6.7
56				7.1	6.9	6.8	6.5	6.5	6.2	6
58				6.5	6.3	6.1	5.9	5.8	5.6	5.4
60					5.7	5.5	5.3	5.3	5	4.8
62						5	4.7	4.7	4.4	4.3
64							4.2	4.2	3.9	3.8
66							3.7	3.7	3.5	3.3
68								3.3	3	2.8
70									2.6	2.4
72										2

Magnification

9 | 9 | 8 | 7 | 7 | 6 | 5 | 5 | 5 | 4

The actual lifting capacity must be deducted from the rated lifting capacity in this table by the weight of the hook, sling and wire rope wrapped around the hook and boom head.
The rated load in the table is the value when the load is lifted slowly and steadily on a horizontal hard ground and the non-travel lifting work is performed.
The rated load in the table is based on the calculation value of the main boom section without the tower arm back plate, tower arm guide pulley and arm end single pulley.
The tower arm back plate needs to be removed from each boom section, and the tower arm guide pulley needs to be removed from the top section of the main boom.
The waist rope needs to be used for the combination at the "*" when the main boom length exceeds 74m, and it is recommended to use a wedge to assist the boom when the main boom length exceeds 77m.
