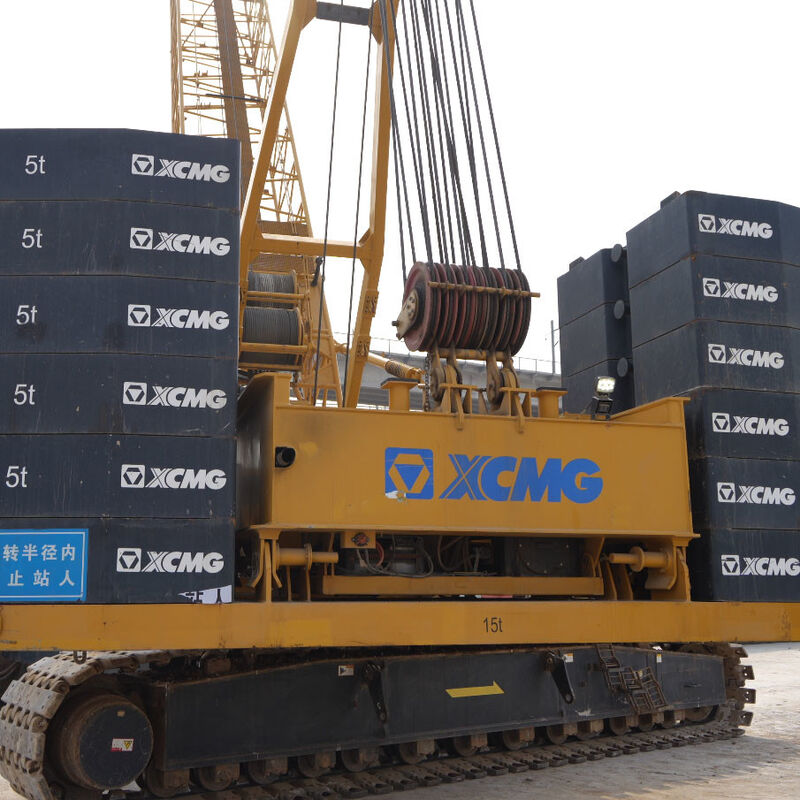

| Brand Name: | XCMG |
| Model Number: | XGC 300t |
| MOQ: | One Crane |
| Price: | 200,000-6,000,000 RMB per unit |
| Payment Terms: | L/C,T/T |
| Supply Ability: | Supply According to Customer Needs |
Shield working condition without third hook (TBF/1)
Shield working condition - working range of main boom and main hook without third hook (TBF/1)
| Shield auxiliary arm: 7m | |||||
|---|---|---|---|---|---|
| Radians (m) | Main boom length (m) | ||||
| 19 t | 22 t | 25 t | 28 t | 31 t | |
| 6 | 260.0 | 260.0 | 256.2 | 252.0 | 240.0 |
| 7 | 250.0 | 245.0 | 239.3 | 235.2 | 230.1 |
| 8 | 220.0 | 210.0 | 206.1 | 203.0 | 199.0 |
| 9 | 196.0 | 183.7 | 180.6 | 178.0 | 174.7 |
| 10 | 180.0 | 175.0 | 165.0 | 158.3 | 155.5 |
| 11 | 161.0 | 152.0 | 144.0 | 142.3 | 140.0 |
| 12 | 142.0 | 132.2 | 130.4 | 128.9 | 126.9 |
| 13 | 125.0 | 120.3 | 119.0 | 117.7 | 116.0 |
| 14 | 111.0 | 110.2 | 109.1 | 108.0 | 106.6 |
| 16 | 92.0 | 91.0 | 90.7 | 90.6 | 90.5 |
| 18 | 77.0 | 76.6 | 76.5 | 76.2 | 75.8 |
| 20 | 65.6 | 65.5 | 65.1 | 64.7 | |
| 22 | 57.0 | 56.8 | 56.4 | ||
| 26 | 44.2 | 43.9 | |||
| 28 | 39.4 | ||||
| Shield auxiliary arm: 7m | |||||
|---|---|---|---|---|---|
| Radians (m) | Main boom length (m) | ||||
| 19 t | 22 t | 25 t | 28 t | 31 t | |
| 6 | 255.0 | 250.0 | 246.0 | 240.0 | 233.0 |
| 7 | 242.5 | 239.1 | 234.0 | 231.0 | 225.0 |
| 8 | 207.9 | 205.5 | 201.5 | 198.3 | 194.3 |
| 9 | 181.5 | 179.7 | 176.6 | 174.0 | 170.7 |
| 10 | 160.7 | 159.3 | 156.7 | 154.6 | 151.9 |
| 11 | 143.8 | 142.7 | 140.6 | 138.8 | 136.6 |
| 12 | 129.6 | 129.0 | 127.2 | 125.8 | 123.8 |
| 13 | 117.9 | 117.4 | 116.0 | 114.7 | 113.0 |
| 14 | 106.8 | 106.3 | 105.9 | 105.2 | 103.8 |
| 16 | 87.8 | 87.7 | 87.6 | 87.5 | 87.0 |
| 17 | 80.5 | 80.5 | 80.1 | 80.0 | 78.4 |
| 19 | 68.5 | 68.1 | 67.7 | 66.8 | |
| 20 | 63.5 | 63.1 | 63.1 | ||
| 22 | 54.6 | 54.5 | |||
| 24 | 47.8 | ||||
| 26 | 41.7 | ||||
