Xgc300 Used 300 Ton Crawler Crane For Construction

Name: Xgc300 Used 300 Ton Crawler Crane For Construction
Brand: Shandong Tengfei Hoisting Engineering Co., Ltd.
SKU: XGC 300t
Price: 103.00 USD
Availability: InStock

Brand Name:	XCMG
Model Number:	XGC 300t
MOQ:	One Crane
Price:	200,000-6,000,000 RMB per unit
Payment Terms:	L/C,T/T
Supply Ability:	Supply According to Customer Needs

Detail Information

Product Description

Detail Information

Place of Origin:

China

Maximum Lifting Height:

132 M

Boom Length:

102 M

Maximum Tip Height:

152 M

Max Gradeability:

30%

Slewing Speed:

1.5 Rpm

Crawler Length:

10.5 M

Maximum Travel Speed:

1.5 Km/h

Jib Length:

30 M

Fuel Tank Capacity:

1,500 L

Maximum Line Speed:

120 M/min

Operating Weight:

300,000 Kg

Ground Pressure:

0.12 Kg/cm2

Maximum Lifting Capacity:

300 Tons

Engine Power:

450 KW

Packaging Details:

Packing According to Customer Requirements

Highlight:

Used 300 ton crawler crane

Construction 300 ton crawler crane

xgc 300 crawler crane

Product Description

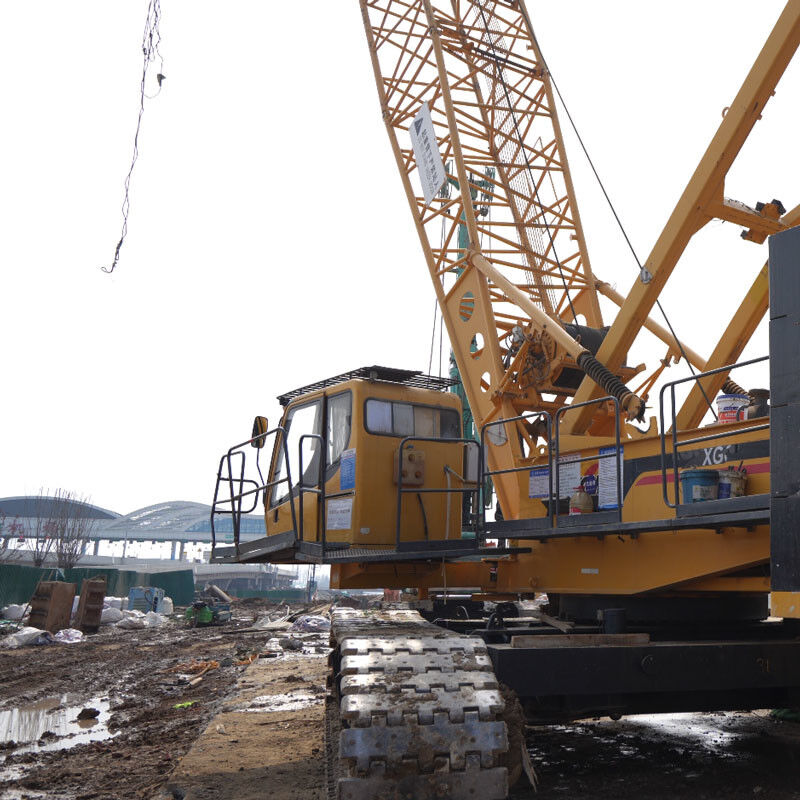

XGC300 Used 300 Ton Crawler Crane For Construction

XGC 300t Crawler Crane For Tower Arm Lifting Without Main Arm Pulley Block And Maximum Lifting Moment Of 1865t.m

XGC 300t(-I) Crawler Crane Technical Specifications

Crawler crane models: XGC 300t(-I)

Max rated lifting capacity: 300t

Maximum lifting moment: 1865t.m

Tower working condition arm table

Table of tower arm lifting without main arm pulley block and tower arm single pulley (HW/1)

Turntable counterweight 115t + vehicle body counterweight 40t	Tower arm assembly
Main boom assembly	W24	W30	W36	W42	W48	W54	◇W60	☆W66
H25	◎	◎	◎	◎	◎	◎	◎	◎

Table of tower type jib without main boom pulley block and with third hook of single tower boom pulley (HWS/1 & HWS/3)

Turntable counterweight 115t + vehicle body counterweight 40t	Tower arm assembly
Main boom assembly	WS24	WS30	WS36	WS42	WS48	WS54	◇W60	☆W66
H25	◎	◎	◎	◎	◎	◎	◎	◎

Tower type jib table with single pulley without tower jib and main hook (HBW/1 & HBW/3)

Tower type jib table with single pulley without tower jib and main hook (HBW/1 & HBW/3)	Tower type jib table with single pulley without tower jib and main hook (HBW/1 & HBW/3)
Main boom assembly	W24	W30	W36	W42	W48	W54	◇W60	☆W66
HB25	◎	◎	◎	◎	◎	◎	◎	◎

Notes:

1. "◎" -- Can raise the arm. "●" -- Need wedges to assist in raising the arm. "×" -- Working condition combination is not allowed.

2. "◇" -- Tower arm combination requires a 2.590m waist rope; "☆" -- Tower arm combination requires a 3.905m waist rope.

3. When raising the arm, please place the crawler drive wheel behind the vehicle body.
