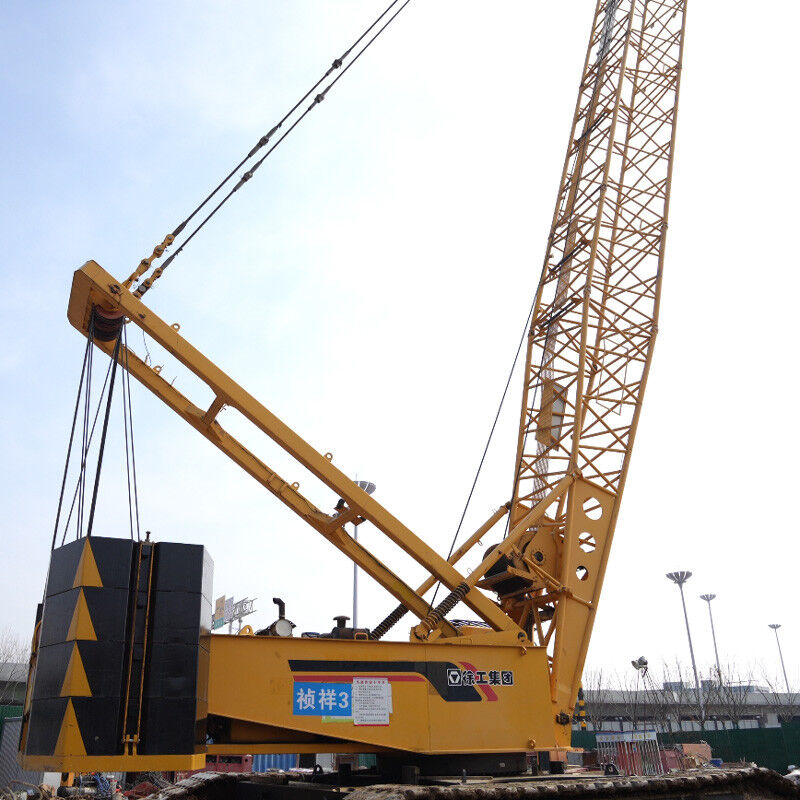

2nd Xcmg 4000t Crawler Crane For Urban Infrastructure Construction And Maintenance

Name: 2nd Xcmg 4000t Crawler Crane For Urban Infrastructure Construction And Maintenance
Brand: Shandong Tengfei Hoisting Engineering Co., Ltd.
SKU: XGC 300t
Price: 103.00 USD
Availability: InStock

Brand Name:	XCMG
Model Number:	XGC 300t
MOQ:	One Crane
Price:	200,000-6,000,000 RMB per unit
Payment Terms:	L/C,T/T
Supply Ability:	Supply According to Customer Needs

Detail Information

Product Description

Detail Information

Place of Origin:

China

Max Line Speed:

120 M/min

Maximum Radius:

80 M

Maximum Travel Speed:

1.5 Km/h

Counterweight:

100 Tons

Engine Power:

447 KW

Maximum Line Speed:

120 M/min

Rated Power:

298 KW

Max Lifting Capacity:

300 Tons

Boom Length:

18-84 Meters

Track Shoe Width:

1,200 Mm

Max Torque:

1,700 Nm

Maximum Tip Height:

152 M

Packaging Details:

Packing According to Customer Requirements

Highlight:

2nd xcmg 300t crawler crane

2nd xcmg 300 ton crane

Product Description

2nd XCMG 4000t Crawler Crane for Urban Infrastructure Construction and Maintenance

XGC 300t(-I) Crawler Crane Technical Specifications

Crawler crane models: XGC 300t(-I)

Max rated lifting capacity: 300t

Maximum lifting moment: 1865t.m

Fixed jib condition

A. Fixed jib working condition - main boom section combination table

Name and quantity Main boom assembly	Main boom bottom section 10.5m	Main boom middle section 3m	Main boom middle section 6m	Main boom middle section 12mA	Main boom middle section 12mB	Main boom transition section 7m	Main boom connection section 1.5m	Arm pulley block
H(B)34	1	3[1]	1[0]	0[1]	0	1	1	(1)
H(B)37	1	2[0]	0[1]	1[1]	0	1	1	(1)
H(B)40	1	3[1]	0[1]	1	0	1	1	(1)
H(B)43	1	2[0]	1[0]	1[2]	0	1	1	(1)
H(B)46	1	3[1]	1[0]	1[2]	0	1	1	(1)
H(B)49	1	2[0]	0[1]	2	0	1	1	(1)
H(B)52	1	3[1]	0[1]	2	0	1	1	(1)
H(B)55	1	2[0]	1[0]	2[3]	0	1	1	(1)
H(B)58	1	3[1]	1[0]	2[3]	0	1	1	(1)
H(B)61	1	2[0]	0[1]	3	0	1	1	(1)
H(B)64	1	3[1]	0[1]	3	0	1	1	(1)
H(B)67	1	2[0]	1[0]	3	0[1]	1	1	(1)
H(B)70	1	3[1]	1[0]	3	0[1]	1	1	(1)
H(B)73	1	2[0]	0[1]	3	1	1	1	(1)
H(B)76	1	3[1]	0[1]	3	1	1	1	(1)
*H(B)79	1	2[0]	1[0]	3	1[2]	1	1	(1)
*H(B)82	1	3[1]	1[0]	3	1[2]	1	1	(1)
*H(B)85	1	2[0]	0[1]	3	2	1	1	(1)

Notes:

1. "*" -- Indicates that the main boom combination needs to use a 1.31m waist rope; (B) -- The main boom head pulley block is an option.

2. The rear pull plates of the tower boom need to be removed from each boom section, and the tower boom guide pulley needs to be removed from the main boom reducer section.

3. Two main boom intermediate sections of 3m can be used to replace one main boom intermediate section of 6m, or two main boom intermediate sections of 3m and one main boom intermediate section of 6m can be used to replace one main boom intermediate section of 12mA. When replacing, attention must be paid to the matching of the number of pull plates and pins.

B. Fixed jib working conditions - Fixed jib section combination table

Name and quantity Fixed jib assembly	Fixed jib Bottom section 4.5m	Fixed jib middle section 3m	Fixed jib middle section 6m	Fixed jib top section 2.5m	Fixed jib single pulley(S)
F(S)7	1	0	0	1	(1)
F(S)10	1	1	0	1	(1)
F(S)16	1	1	1	1	(1)

Notes:

1. (S) ---- indicates the optional fixed jib single pulley [the fixed jib single pulley is common to the shield arm single pulley].

2. The fixed jib boom section is common to the shield jib boom section.

3. To ensure that the arm combination function is maximized, it is recommended that users choose to purchase a fixed jib length of 7m.
