| Brand Name: | XCMG |
| Model Number: | XGC 300t |
| MOQ: | One Crane |
| Price: | 200,000-6,000,000 RMB per unit |
| Payment Terms: | L/C,T/T |
| Supply Ability: | Supply According to Customer Needs |

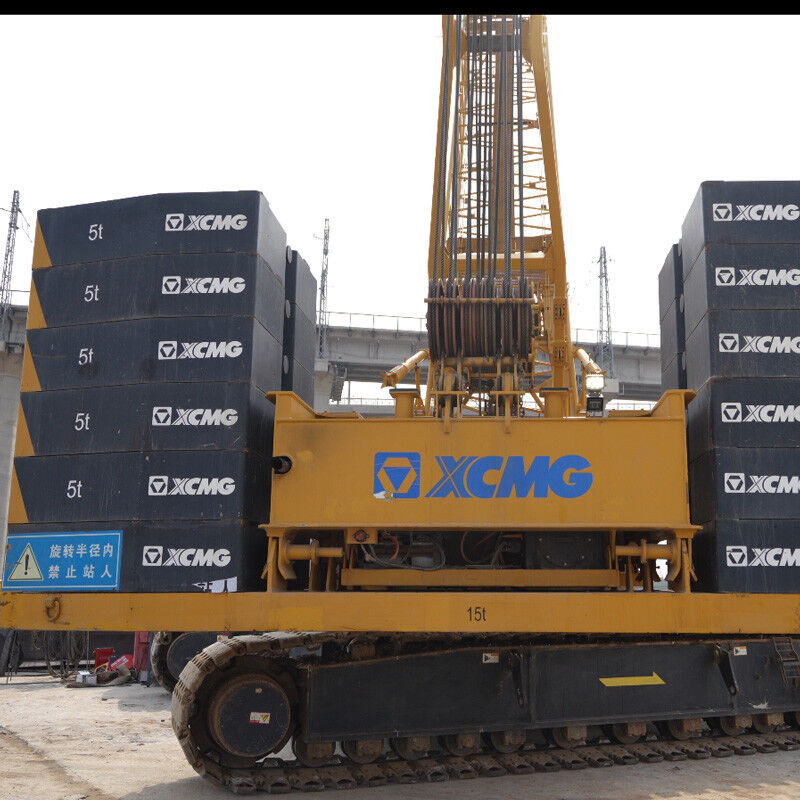

This crane offers excellent performance and a wide working range for demanding industrial applications.
Tower working condition with no main arm pulley block, featuring the third hook of the tower arm single pulley with tower arm main hook (HWS/3).
Tower working condition diagram showing no main arm pulley block, with tower arm main hook (HWS/3) tower arm single pulley third hook working range.
Tower working condition with no main arm pulley block, featuring tower arm main hook HWS/3 at 85° with 115t+40t capacity at 61m tower arm single pulley third hook performance.
| Main boom length (m) | 61 | |||||||
|---|---|---|---|---|---|---|---|---|
| HWS/3 | Tower arm length (m) | |||||||
| Radians | 24 | 30 | 36 | 42 | 48 | 54 | ◇60 | ☆66 |
| (m) | t | t | t | t | t | t | t | t |
| 18 | 16.0 | |||||||
| 19 | 16.0 | 16.0 | ||||||
| 20 | 16.0 | 16.0 | ||||||
| 22 | 16.0 | 16.0 | 16.0 | |||||
| 24 | 16.0 | 16.0 | 16.0 | 16.0 | ||||
| 26 | 16.0 | 16.0 | 16.0 | 16.0 | 16.0 | |||
| 28 | 16.0 | 16.0 | 16.0 | 16.0 | 16.0 | 16.0 | ||
| 30 | 16.0 | 16.0 | 16.0 | 16.0 | 16.0 | 16.0 | 16.0 | |
| 32 | 16.0 | 16.0 | 16.0 | 16.0 | 16.0 | 16.0 | 14.9 | |
| 34 | 16.0 | 16.0 | 16.0 | 16.0 | 16.0 | 16.0 | 14.0 | |
| 36 | 16.0 | 16.0 | 16.0 | 16.0 | 16.0 | 14.9 | 13.1 | |
| 38 | 16.0 | 16.0 | 16.0 | 16.0 | 14.9 | 12.2 | ||
| 40 | 16.0 | 16.0 | 16.0 | 16.0 | 13.7 | 11.3 | ||
| 42 | 15.7 | 15.3 | 14.6 | 13.6 | 11.3 | |||
| 44 | 14.0 | 13.7 | 13.2 | 12.3 | 10.3 | |||
| 46 | 12.6 | 12.4 | 11.8 | 11.1 | 10.3 | |||
| 48 | 11.0 | 10.6 | 10.1 | 9.2 | ||||
| 50 | 9.8 | 9.5 | 9.0 | 8.3 | ||||
| 52 | 8.7 | 8.4 | 8.0 | 7.4 | ||||
| 54 | 7.3 | 7.1 | 6.5 | |||||
| 56 | 6.5 | 6.1 | 5.6 | |||||
| 58 | 5.5 | 5.4 | 4.9 | |||||
| 60 | 4.5 | 4.1 | ||||||
| 62 | 3.8 | 3.5 |
