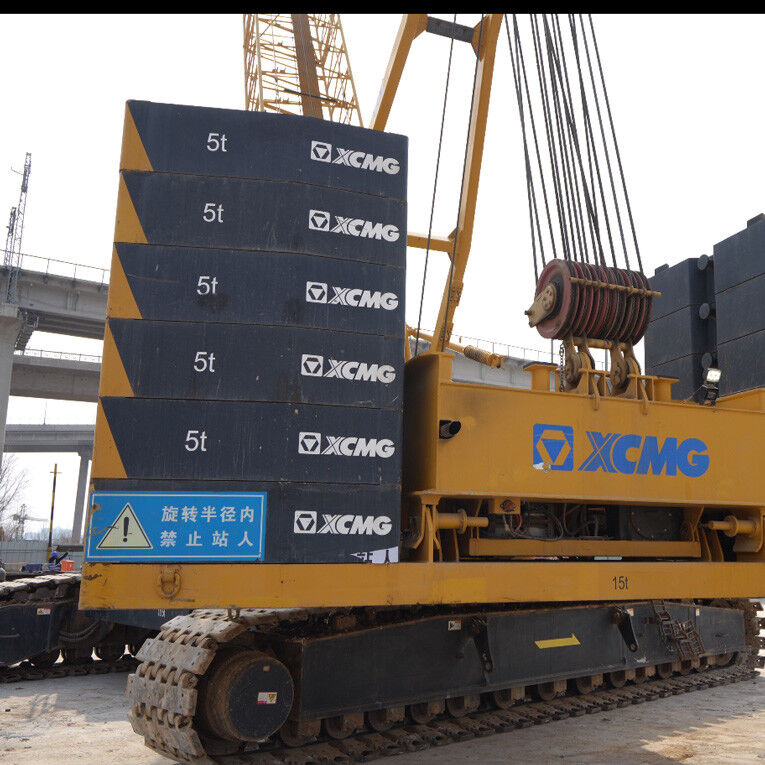

Used 300t Boom Crawler Crane Inject New Vitality Into Engineering Construction

Name: Used 300t Boom Crawler Crane Inject New Vitality Into Engineering Construction
Brand: Shandong Tengfei Hoisting Engineering Co., Ltd.
SKU: XGC300
Price: 103.00 USD
Availability: InStock

Brand Name:	XCMG
Model Number:	XGC300
MOQ:	One Crane
Price:	200,000-6,000,000 RMB per unit
Supply Ability:	Supply According to Customer Needs

Detail Information

Product Description

Detail Information

Place of Origin:

China

Packaging Details:

Packing According to Customer Requirements

Highlight:

300t boom crawler crane

engineering construction boom crawler crane

Product Description

Used 300t Boom Crawler Crane Inject New Vitality Into Engineering Construction

XGC 300t Crawler Crane Technical Specifications

Crawler crane models: XGC 300t

Max rated lifting capacity: 300t

Maximum lifting moment: 1865t.m

Typical working conditions

1. Main boom working conditions

A. Combination table of main boom sections without arm end pulley

Name and quantity	Main boom assembly	Main boom bottom section 10.5m	Main boom intermediate section 3m	Main boom intermediate section 6m	Main boom intermediate section 12mA	Main boom intermediate section 12mB	Main boom reducer 7m	Main boom connection 1.5m
HB19	1	0	0	0	0	1	1	1
HB22	1	1	0	0	0	1	1	1
HB25	1	2[0]	0[1]	0	0	1	1	1
HB28	1	3[1]	0[1]	0	0	1	1	1
HB31	1	2[0]	1[0]	0[1]	0	1	1	1
HB34	1	3[1]	1[0]	0[1]	0	1	1	1
HB37	1	2[0]	0[1]	1[1]	0	1	1	1
HB40	1	3[1]	0[1]	1	0	1	1	1
HB43	1	2[0]	1[0]	1[2]	0	1	1	1
HB46	1	3[1]	1[0]	1[2]	0	1	1	1
HB49	1	2[0]	0[1]	2	0	1	1	1
HB52	1	3[1]	0[1]	2	0	1	1	1
HB55	1	2[0]	1[0]	2[3]	0	1	1	1
HB58	1	3[1]	1[0]	2[3]	0	1	1	1
HB61	1	2[0]	0[1]	3	0	1	1	1
HB64	1	3[1]	0[1]	3	0	1	1	1
HB67	1	2[0]	1[0]	3	0[1]	1	1	1
HB70	1	3[1]	1[0]	3	0[1]	1	1	1
HB73	1	2[0]	0[1]	3	1	1	1	1
HB76	1	3[1]	0[1]	3	1	1	1	1
*HB79	1	2[0]	1[0]	3	1[2]	1	1	1
*HB82	1	3[1]	1[0]	3	1[2]	1	1	1
*HB85	1	2[0]	0[1]	3	2	1	1	1
*HB88	1	1	1	3	2	1	1	1
*HB91	1	2	1	3	2	1	1	1
*HB94	1	3	1	3	2	1	1	1

The "*" main boom combination requires a 1.33m waist rope.
The tower arm rear pull plate must be removed from each boom section, and the tower arm guide pulley must be removed from the main boom reducer section.
Two 3m main boom intermediate sections can be used to replace one 6m main boom intermediate section, or two 6m main boom intermediate sections can be used to replace one 12mA main boom intermediate section, but attention must be paid to the matching of the pull plate and the pin number.
To ensure that the boom combination function is maximized, it is recommended to purchase main boom lengths of 70m, 67m, and 64m.

B. Combination table of main boom sections with arm end pulleys

Name and quantity	Main boom assembly	Main boom bottom section 10.5m	Main boom intermediate section 3m	Main boom intermediate section 6m	Main boom intermediate section 12mA	Main boom intermediate section 12mB	Main boom reducer 7m	Main boom connection 1.5m	Arm pulley block
HBS25	1	2[0]	0[1]	0	0	1	1	1	1
HBS28	1	3[1]	0[1]	0	0	1	1	1	1
HBS31	1	2[0]	1[0]	0[1]	0	1	1	1	1
HBS34	1	3[1]	1[0]	0[1]	0	1	1	1	1
HBS37	1	2[0]	0[1]	1[1]	0	1	1	1	1
HBS40	1	3[1]	0[1]	1	0	1	1	1	1
HBS43	1	2[0]	1[0]	1[2]	0	1	1	1	1
HBS46	1	3[1]	1[0]	1[2]	0	1	1	1	1
HBS49	1	2[0]	0[1]	2	0	1	1	1	1
HBS52	1	3[1]	0[1]	2	0	1	1	1	1
HBS55	1	2[0]	1[0]	2[3]	0	1	1	1	1
HBS58	1	3[1]	1[0]	2[3]	0	1	1	1	1
HBS61	1	2[0]	0[1]	3	0	1	1	1	1
HBS64	1	3[1]	0[1]	3	0	1	1	1	1
HBS67	1	2[0]	1[0]	3	0[1]	1	1	1	1
HBS70	1	3[1]	1[0]	3	0[1]	1	1	1	1
HBS73	1	2[0]	0[1]	3	1	1	1	1	1
HBS76	1	3[1]	0[1]	3	1	1	1	1	1
*HBS79	1	2[0]	1[0]	3	1[2]	1	1	1	1
*HBS82	1	3[1]	1[0]	3	1[2]	1	1	1	1
*HBS85	1	2[0]	0[1]	3	2	1	1	1	1
*HBS88	1	1	1	3	2	1	1	1	1

The "*" main boom combination requires a 1.33m waist rope.
The tower arm rear pull plate needs to be removed from each boom section, and the tower arm guide pulley needs to be removed from the main boom reducer.
Two main boom intermediate sections of 3m can be used to replace one main boom intermediate section of 6m, and two main boom intermediate sections of 6m can be used to replace one main boom intermediate section of 12mA, but attention must be paid to the matching of the pull plate and the pin number.
To ensure the maximum function of the boom combination, it is recommended that users purchase the main boom length of 64m and 70m.
