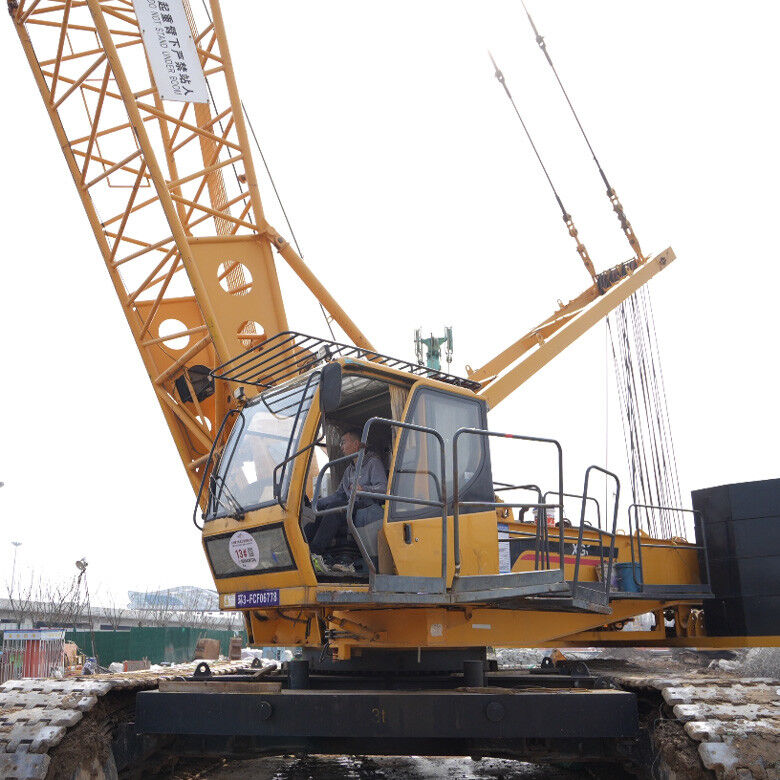

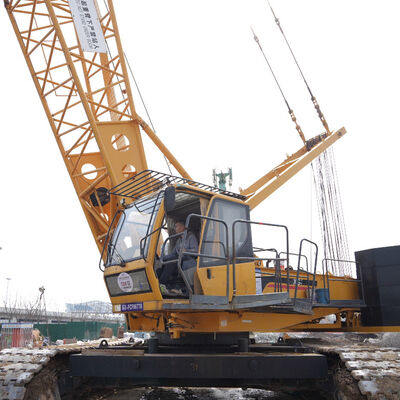

XGC300 Large Crawler Crane XCMG Crawler Crane Second Hand 300T

XGC300 Large Crawler Crane XCMG Crawler Crane Second Hand 300T

Brand Name: XCMG
Model Number: XGC300
MOQ: One Crane
Price: 200,000-6,000,000 RMB per unit
Payment Terms: L/C,T/T
Supply Ability: Supply According to Customer Needs
Detail Information
Place of Origin:
China
Packaging Details:
Packing According to Customer Requirements
Highlight:

XGC300 Large Crawler Crane XCMG

,

XCMG Crawler Crane Second Hand

,

XGC300 Crawler Crane Second Hand

Product Description
XGC 300t Crawler Crane Technical Specifications
Crawler crane models: XGC 300t
Max rated lifting capacity: 300t
Maximum lifting moment: 1865t.m
Product Overview
Hydraulic System
  • Hydraulic proportional pilot control system enables load-independent flow distribution, precise speed control, and sensitive operation
  • Main valve allows compound operation of multiple actions with compact structure and easy maintenance
  • Main and auxiliary hoists feature double-pump design for easy high/low speed control
  • Dedicated rotary buffer oil circuit ensures smooth start/stop rotation for precise lifting operations
Electrical System
  • Comprehensive system includes engine control, auxiliary equipment, hydraulic system control, torque limit and safety monitoring
  • Dual system configuration: conventional electrical system and PLC control system
  • Conventional system handles power supply, starting control, cabin environment, and lighting
  • PLC system manages winches, rotation, boom operations, and engine monitoring via CAN-bus technology
Engine System
  • Type: Weichai WP10G336E344 inline water-cooled turbocharged engine with electronic fuel injection
  • Rated power: 247KW at 1900rpm
  • Standard fuel tank capacity: 700L (optional 1050L available)
Counterweight
Turntable counterweight: 115t
Vehicle body counterweight: 40t
Hook Configurations
Hook Name 260 t 160 t 16 t
Weight (t) 4.6 3.9 0.9
