Home / Products / 500T Crawler Crane /

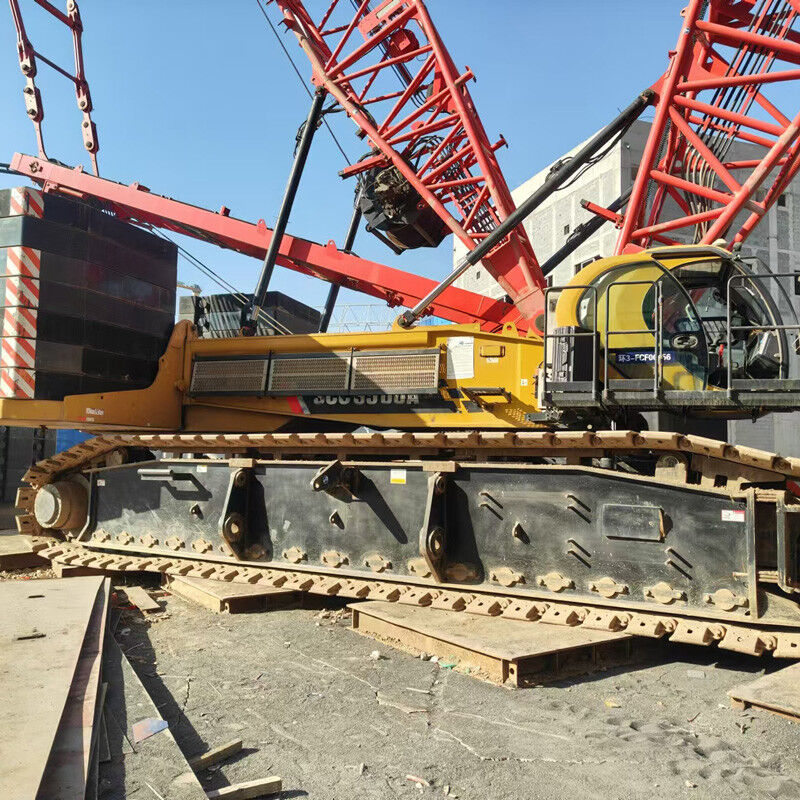

SANY Used 500T Crawler Crane SCC6200TM-7 500 Ton Crawler Crane

SANY Used 500T Crawler Crane SCC6200TM-7 500 Ton Crawler Crane

SANY Used 500T Crawler Crane SCC6200TM-7 500 Ton Crawler Crane

Brand Name: SANY
Model Number: SCC6200TM-7
MOQ: One Crane
Price: 200,000-6,000,000 RMB per unit
Payment Terms: L/C,T/T
Supply Ability: Supply According to Customer Needs
Detail Information
Product Description
Detail Information
Place of Origin:
China
Auxiliary Winch Line Pull:
200 KN
Max Lifting Height:
120 Meters
Max Lifting Capacity:
500 Tons
Max Gradeability:
30%
Boom Length:
15-100 Meters
Slewing Speed:
1.5 Rpm
Fuel Tank Capacity:
1500 Liters
Operating Weight:
500 Tons
Boom Angle:
0-80 Degrees
Counterweight:
100 Tons
Main Winch Line Pull:
500 KN
Engine Power:
450 KW
Max Outrigger Span:
10 Meters
Max Travel Speed:
1.5 Km/h
Packaging Details:
Packing According to Customer Requirements
Highlight:

SANY Used 500T Crawler Crane

,

Used 500T Crawler Crane

,

SCC6200TM-7 500 Ton Crawler Crane

Product Description
SANY Used 500T Crawler Crane Equipment 1.5 Km/H Travel Speed With Good Controllability
Used 500T Crawler Crane Equipment With Good Controllability Is Used In Various Construction Operations
SCC6200TM-7 Crawler Crane
Max lifting moment: 6200TM
Longest main boom: 84m
Longest main boom + jib: 84m+84m
Product Specifications
Boom limit device
  • When the main boom elevation angle is greater than 85° and the auxiliary boom elevation angle is greater than 75°, the corresponding limit switch will be activated, the control system will automatically cut off the boom lifting action, and the display and buzzer will alarm.
  • When the main boom lowering angle is less than 30° and the auxiliary boom angle is less than 15°, the control system will automatically cut off the boom lowering action, and the display and buzzer will alarm.
Anemometer
  • Installed on the top of the boom, it monitors the wind speed in real time and displays it on the monitor.
Anti-drop card for lifting hook
  • A baffle is installed on the lifting hook to prevent the steel rope from falling off.
Slewing and walking alarm
  • When slewing and walking, the alarm horn sounds at a certain frequency to warn people around the crane.
Operation release
  • Pull up the function lock lever on the right side of the driver's seat or the operator leaves the seat, and all the operating handles will not work, which can avoid misoperation caused by body collision when getting on and off the car.
Engine power limit load adjustment and stall protection
  • The controller monitors the engine power to prevent the engine from stalling and stalling.
Engine status monitoring
  • It can display the engine cooling water temperature, fuel volume, cumulative working time, oil pressure, engine speed, battery charging status, voltage, etc.
Remote monitoring system
  • Monitor and analyze the operation data, so as to remotely diagnose the fault and solve the problem in time.
Emergency stop button
  • In case of an emergency such as a sudden loss of control of the crane, press the emergency stop button, and the lifting, luffing, slewing and walking actions will be emergency braked, and the engine will stop.
Electronic level
  • The tilt angle of the crane is displayed in real time on the monitor to protect the safe operation of the crane.
Lightning protection device
  • Including lightning protection grounding device and lightning protection cut-off device, which can effectively prevent damage to electrical system components and damage to workers when lightning strikes.
