Large Lifting Used 500T Crawler Crane Equipment With Good Safety

Name: Large Lifting Used 500T Crawler Crane Equipment With Good Safety
Brand: Shandong Tengfei Hoisting Engineering Co., Ltd.
SKU: SCC6200TM-7
Price: 103.00 USD
Availability: InStock

Brand Name:	SANY
Model Number:	SCC6200TM-7
MOQ:	One Crane
Price:	200,000-6,000,000 RMB per unit
Payment Terms:	L/C,T/T
Supply Ability:	Supply According to Customer Needs

Detail Information

Product Description

Detail Information

Place of Origin:

China

Engine Power:

800 KW

Control System:

PLC

Maximum Travel Speed:

1.5 Km/h

Jib Length:

30-90 Meters

Slewing Speed:

0-2.5 Rpm

Counterweight:

200 Tons

Maximum Lifting Height:

120 Meters

Maximum Lifting Capacity:

500 Tons

Hoist Speed:

0-120 M/min

Maximum Gradeability:

30%

Operating Weight:

500 Tons

Boom Length:

15-90 Meters

Packaging Details:

Packing According to Customer Requirements

Highlight:

used 500t crawler crane

large 500t crawler crane

large hydraulic crawler crane

Product Description

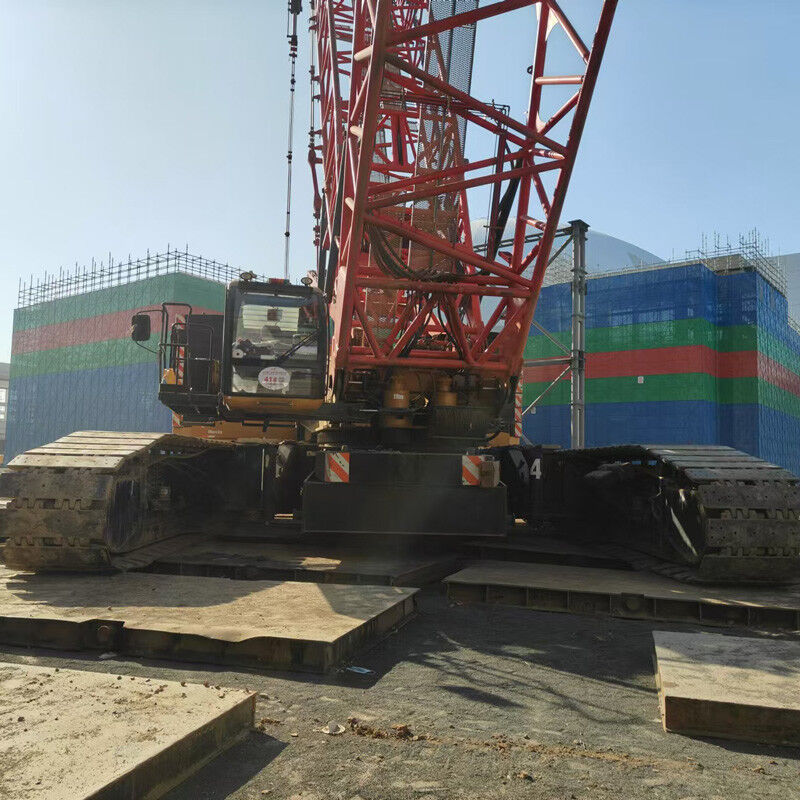

Large Lifting Used 500T Crawler Crane Equipment With Good Safety

SCC6200TM-7 Crawler Crane

Max lifting moment: 6200TM

Longest main boom: 84m

Longest main boom + jib: 84m+84m

Product Specifications

Superlift Device

The two ends of the superlift mast arm are variable cross-section, and the middle is a space truss structure with equal cross-section
The steel pipes are welded, and the top and root of the arm are reinforced with steel plates for better load transmission
The length of the superlift mast is 30m
Composition: lower arm 12m×1, middle arm 6m×1, upper arm 12m×1

Hook Options

Name	Max lifting weight	Amount	Number of pulleys	Unit weight(t)
500t Hook	500t	1	2 ×9	10.80
200t Hook	200t	1	9	3.7
240t Hook	240t	1	2 ×4	4.71
160t Hook	160t	1	2 ×3	3.81
130t Hook	130t	1	5	3.06
50t Hook	50t	1	2	2.52
16t Hook	16t	1	-	0.94

Note: 500t hook can be disassembled into 250t hook, 240t hook can be disassembled into 120t hook, 160t hook can be disassembled into 80t hook. For shield working conditions, 200t single pulley block hook can be selected.

Hook Lifting Max Limit

Working Weight

The working weight is about 415t, including the upper and lower parts, the main engine rear counterweight, the central counterweight, the 24m basic boom and the 500t hook.

Ground Pressure

The average ground pressure with basic arm is 0.175MPa.

Gradeability

Gradeability with basic arm is 15%.

Torque Limiter

The torque limiter independently developed by Sany is used to form a network with other controllers through the CAN bus to achieve safe and reliable control
The torque limiter can automatically detect the weight of the crane and the angle of the crane arm, and can display its rated load and actual load working radius, hook height, etc.
The torque limiter system consists of a large-screen color display, a host, an angle sensor, a tension sensor, and a pressure sensor

Main and Auxiliary Hook Over-Winding Prevention Device

Used to prevent the hook from over-lifting. When the lifting hook is lifted to a certain height, the limit switch is activated, the control system automatically cuts off the lifting action of the lifting hook, and the display and buzzer alarm at the same time. At this time, the lifting hook can only be lowered to prevent the over-winding of the lifting hook.

Main and Auxiliary Hook Over-Release Prevention Device

Used to prevent over-release of the hoisting wire rope. When the wire rope is released to the last three turns, the limit switch is activated, the control system automatically cuts off the rope release action, and the display and buzzer alarm at the same time. At this time, only the rope retraction operation can be performed to prevent the over-release of the lifting hook.

Installation Mode/Working Mode Switch

In the installation mode, some safety devices do not work (such as the lower limit of the auxiliary arm, the angle limit of the moment limiter arm, overload, etc.) to facilitate the installation of the crane
In the working mode, all safety devices are effective
