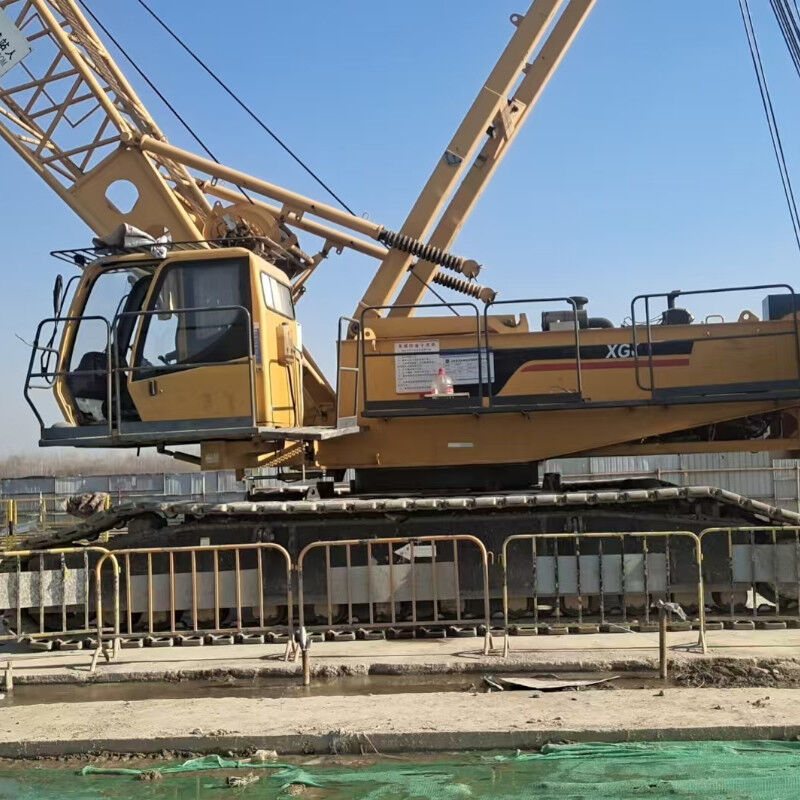

1.2km/H 150T Mobile Crawler Crane Equipment Boom Length 13m - 60m

Name: 1.2km/H 150T Mobile Crawler Crane Equipment Boom Length 13m - 60m
Brand: Shandong Tengfei Hoisting Engineering Co., Ltd.
SKU: XGC150-I
Price: 103.00 USD
Availability: InStock

Brand Name:	XCMG
Model Number:	XGC150-I
MOQ:	One Crane
Price:	200,000-6,000,000 RMB per unit
Payment Terms:	L/C,T/T
Supply Ability:	Supply According to Customer Needs

Detail Information

Product Description

Detail Information

Place of Origin:

China

Gradeability:

30%

Counterweight:

50 Tons

Max. Lifting Capacity:

150 Tons

Max. Slewing Speed:

2.5 Rpm

Boom Length:

13m - 60m

Model:

XGC150

Track Shoe Width:

800mm

Max. Lifting Radius:

80m

Max. Line Speed:

120m/min

Max. Lifting Height:

100m

Engine Power:

298kW

Travel Speed:

1.2km/h

Packaging Details:

Packing According to Customer Requirements

Highlight:

1.2km/h mobile crawler crane

1.2km/h crawler mounted mobile crane

13m mobile crawler crane

Product Description

1.2km/H 150T Mobile Crawler Crane Equipment Boom Length 13m - 60m

Reasonable Price 150T Mobile Crawler Crane Equipment

XGC150-I Crawler Crane Technical Specifications

Crawler crane models: XGC150-I

Maximum rated lifting capacity: 150t

Maximum rated lifting moment: 790.8t.m

Crawler Traveling Device

The crawler traveling device consists of left and right assemblies, each comprising:

Track frame: Box-type structure welded with high-strength steel plates
Drive wheel: High-strength wear-resistant alloy steel
Idler wheel: Double flange design with built-in floating seal
Guide wheel: Cylinder tensioning system for optimal track adjustment
Sprocket wheel: Built-in floating seal with self-lubrication
Track shoe: High-strength wear-resistant alloy steel
Traveling mechanism: Normally closed planetary gear reducer with multi-plate wet brake

Hydraulic System

Features load-sensitive LUDV system with hydraulic pilot proportional control for precise operation:

Main valve enables compound operation of multiple actions
Dual-pump confluence function for main/auxiliary hoist speed control
Dedicated slewing buffer oil circuit for smooth operation
Compact structure with easy maintenance

Electrical System

Comprehensive control system includes:

Engine control and monitoring instruments
Conventional electrical systems (power, lighting, climate control)
PLC control system for all crane movements
CAN-bus technology for all action controls

Engine System

Model	SC9DK270G3
Rated Power	200kw/1800rpm
Max Output Torque	1200N.m
Fuel Tank Capacity	About 400L

Counterweight System

Enhanced stability through combined main machine and central counterweights:

Main Machine Counterweight (48t total)

Component	Weight	Quantity
Counterbalanced pallet	18t/piece	1 piece
Counterweight I	5t/piece	6 pieces

Central Counterweight (6t total)

Component	Weight	Quantity
Counterweight	3t/piece	2 pieces
