| Brand Name: | XCMG |

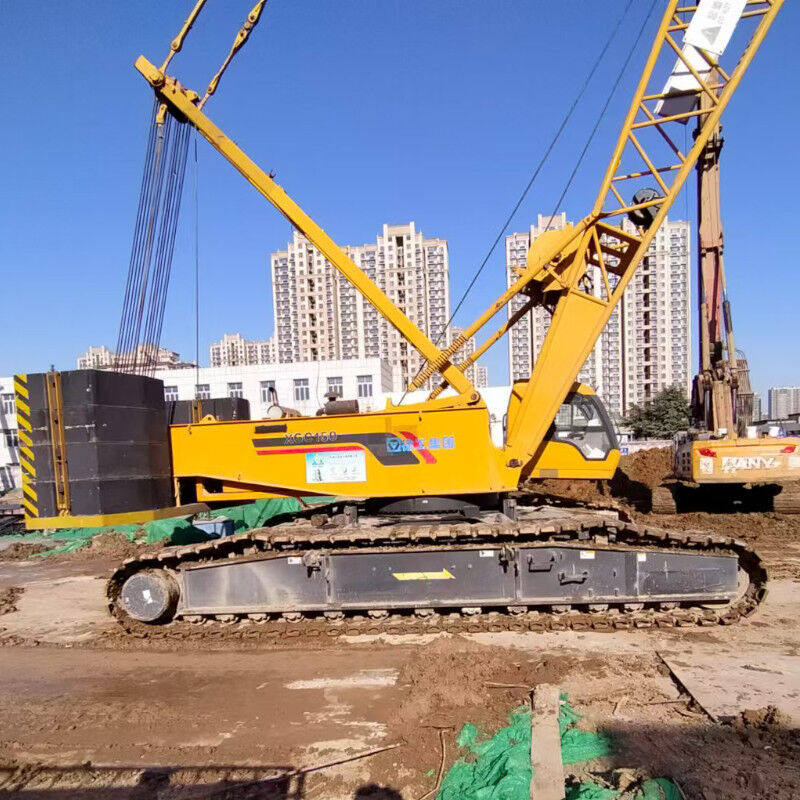

| Model Number: | XGC130 |
| MOQ: | One Crane |
| Price: | 200,000-6,000,000 RMB per unit |
| Payment Terms: | L/C,T/T |
| Supply Ability: | Supply According to Customer Needs |
| Project | Unit | Standard Configuration |
|---|---|---|
| Main boom working condition | ||
| Maximum rated lifting capacity | t | 135 |
| Main boom length | m | 16～76 |
| Main boom working angle | ° | 30～80 |
| Fixed jib condition | ||
| Maximum rated lifting capacity | t | 20 |
| Fixed jib length | m | 13～31 |
| Main arm working angle | ° | 30～80 |
| Main boom length | m | 37～64 |
| Fixed angle between jib and main boom | ° | 15°,30° |
| Speed Parameters | ||
| Maximum lifting moment | t.m | 721 |
| Maximum single rope speed of main hoisting mechanism (No load, fifth floor) | m/min | 118 |
| Maximum single rope speed of auxiliary hoisting mechanism (no load, fourth floor) | m/min | 112 |
| Maximum single rope speed of main boom luffing mechanism (no load, fifth floor) | m/min | 2×45 |
| Maximum slewing speed | r/min | 1.6 |
| Travel speed (high speed/low speed) | Km/h | 1.3/0.6 |
| Gradeability | % | 30 |
| Average ground pressure | Mpa | 0.083 |
| Engine | ||
| Model | / | / |
| Rated Power | KW | 206 |
| Rated speed | Km/h | 2200 |
| Transport parameters | ||
| Machine weight (full configuration, main hook, 16m main boom) | t | 125 |
| Max mass of a single unit in transport state (including counterweight self-disassembly cylinder) | t | 35.7 |
| Maximum dimensions of a single unit (main machinery) in transport state (length × width × height) | m | 11000×3000×3300 |
