Well Maintained 220T Crawler Crane Second Hand Equipment Hydraulic Crawler

Name: Well Maintained 220T Crawler Crane Second Hand Equipment Hydraulic Crawler
Brand: Shandong Tengfei Hoisting Engineering Co., Ltd.
SKU: XLC220
Price: 103.00 USD
Availability: InStock

Brand Name:	XCMG
Model Number:	XLC220
MOQ:	One Crane
Price:	200,000-6,000,000 RMB per unit
Payment Terms:	L/C,T/T
Supply Ability:	Supply According to Customer Needs

Detail Information

Product Description

Detail Information

Place of Origin:

China

Max. Lifting Capacity:

220 Tons

Heavy Boom Length:

24-84m

Rammer Hoisting Height:

20m

Total Mass:

530t

Main Boom Length:

19-28m

Max Hoisting Torque:

1300(t.m)

Rated Hammer Weight:

20t

Gross Weight:

254t

Packaging Details:

Packing According to Customer Requirements

Highlight:

220T crawler crane second hand

Well maintained crawler crane

220T hydraulic crawler

Product Description

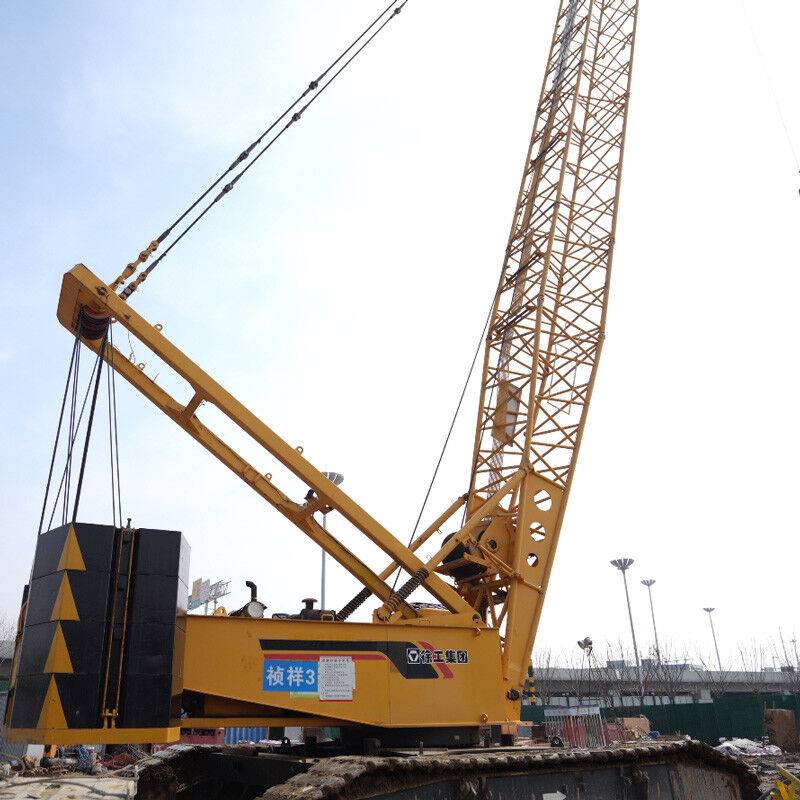

Well Maintained 220T Crawler Crane Second Hand Equipment Hydraulic Crawler

Well-maintained 220T Crawler Crane, Second-hand Equipment, Quality Assurance

XLC220 Crawler Crane Technical Specifications

Crawler crane models: XLC220

Max rated lifting capacity: 220t

Max lifting moment: 1239t.m

Typical working conditions

Main boom working condition_No arm end pulley HB/1_65t+21t main boom main hook performance

Operating radius(m)	56	59	62	65	68	71*	74*	77*	80*	83*
10	89.4	81.5	81.5	68.5

1. When the main boom length exceeds 71m, the waist rope must be used for the combination at the "*" position. When the main boom length exceeds 74m, it is recommended to use an inclined wedge to assist in raising the boom.

2. The tower arm rear pull plate must be removed from each boom section, and the tower arm guide pulley must be removed from the top section of the main boom.

Main boom working condition_No arm end pulley HB/1_55t+21t main boom main hook performance

Operating radius(m)	17	20	23	26	29	32	35	38	41	44	47	50
5	200

1. When the main boom length exceeds 71m, a waist rope is required for the combination at the "*" position. When the main boom length exceeds 74m, it is recommended to use an inclined wedge to assist in raising the boom.

2. The tower arm rear pull plate needs to be removed from each boom section, and the tower arm guide pulley needs to be removed from the top section of the main boom.
