| Brand Name: | XCMG |
| Model Number: | XGC55 |
| MOQ: | One Crane |
| Price: | 200,000-6,000,000 RMB per unit |
| Payment Terms: | L/C,T/T |
| Supply Ability: | Supply According to Customer Needs |

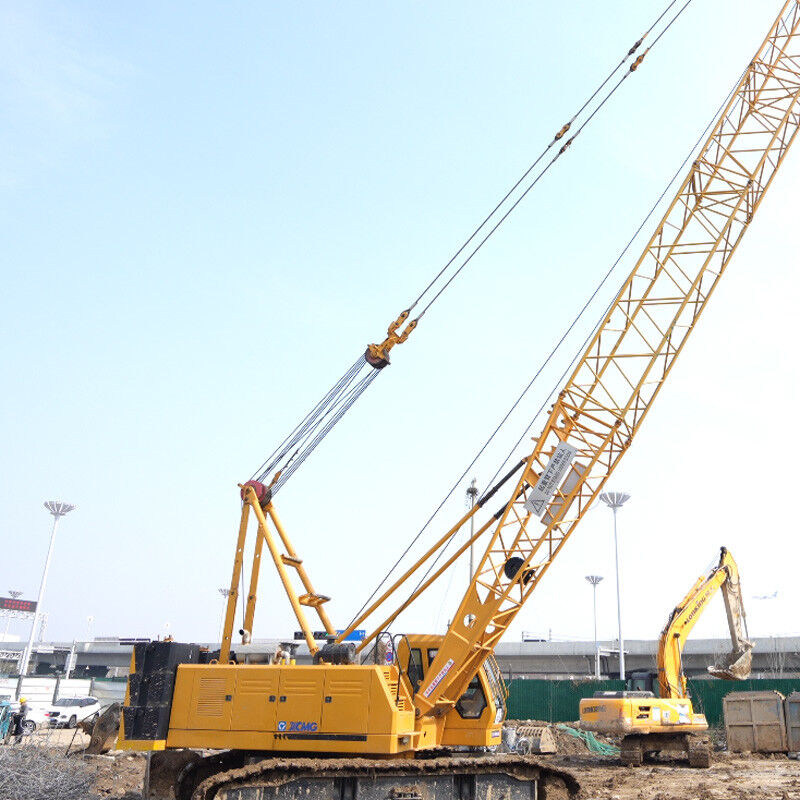

This robust crawler crane is designed to handle demanding rescue and emergency operations with exceptional performance and reliability.
The electrical system includes engine control, monitoring instruments, auxiliary equipment, hydraulic system control, torque limit and safety monitoring.
System Composition: Conventional electrical system and PLC monitoring system.
Conventional Electrical System: 24V parallel circuit with single-wire system and negative grounding. Includes power supply, start control, cab air conditioning, audio, lighting, and wipers.
PLC Monitoring System: Controls main/auxiliary winches, rotation, main arm amplitude changes, and engine status monitoring. Features liquid proportional control technology and CAN-bus bus technology for reliable operation.
Total weight: 16 tons installed behind the turntable with pin-shaft hanging connection.
| Hook Name | 55t(Optional) | 32t | 16t | 8t |
|---|---|---|---|---|
| Weight(t) | 0.62 | 0.35 | 0.28 | 0.14 |
| Number of pulleys | 5 | 3 | 1 | - |
| Maximum rope winding ratio | 10 | 7 | 3 | 1 |
This crane incorporates multiple safety systems including mechanical, electronic and hydraulic safety devices with alarm systems.
In installation mode, safety devices like overwinding prevention, boom limiter, and torque limiter are disabled for crane setup. In working mode, all safety features are fully operational.
The emergency stop button immediately halts all crane operations when activated.
