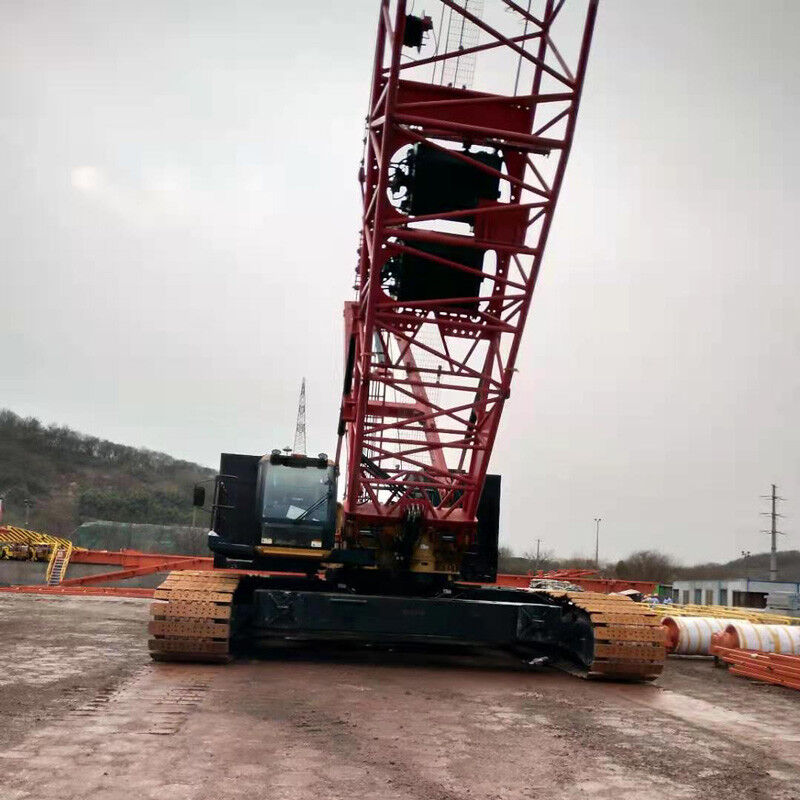

320T Sany Telescopic Crawler Crane Used For Construction Works

Name: 320T Sany Telescopic Crawler Crane Used For Construction Works
Brand: Shandong Tengfei Hoisting Engineering Co., Ltd.
SKU: SCC3200A-1
Price: 103.00 USD
Availability: InStock

Brand Name:	SANY
Model Number:	SCC3200A-1
MOQ:	One Crane
Price:	200,000-6,000,000 RMB per unit
Payment Terms:	L/C,T/T
Supply Ability:	Supply According to Customer Needs

Detail Information

Product Description

Detail Information

Place of Origin:

China

Applicable Industries:

Construction Works , Energy & Mining

Technique:

Casting

Type:

320T

Maximum Line Speed:

120 Meters Per Minute

Travel Speed:

1.5 Km/h

Maximum Ground Bearing Pressure:

20 Kg/cm2

Counterweight:

60 Tons

Hardness:

52-58HRC

Crawler Track Width:

1.5 Meters

Used Crane:

Crawler Crane

Packaging Details:

Packing According to Customer Requirements

Highlight:

320T Sany Telescopic Crawler Crane

Sany Telescopic Crawler Crane Used

Construction Works Crawler Crane Used

Product Description

1820t·M Crawler Cranes 62m+60m Luffing Jib For All Lifting Projects

Crawler Cranes For All Lifting Projects, Suitable For The Price, Used Equipment

SCC3200A-1 Crawler Crane Technical Specifications

Maxi rated load: 320t
Max lifting moment: 1820t *m
Longest main boom: 86m
Longest fixed jib condition: 62m+42m
Longest luffing jib working condition: 62m+60m

Product Specifications

Fixed Jib

The fixed jib has variable cross-sections at both ends and a space truss structure with equal cross-section in the middle. The steel pipes are welded, and the top and root of the jib are reinforced with steel plates, which is more conducive to load transmission
The length of the fixed jib is between 13m and 42m, increasing by 6m
Composition: upper section arm 6.5m, lower section arm 6.5m, middle section arm is 6m × 1, 11.5m × 2
The available lengths of fixed jibs are 13m, 19m, 24.5m, 30.5m, 36m, 42m
Can be installed on the main arm with a length of 32m~62m

Luffing Jib

The two ends of the luffing jib are variable cross-section, and the middle is a space truss structure with equal cross-section. The steel pipes are welded, and the top and root of the jib are reinforced with steel plates, which is more conducive to load transmission
The length of the luffing jib is between 24m and 60m, increasing by 6m
Composition: upper section arm 6m, lower section arm 6m, middle section arm is 6m ×2, 12m ×3
The available luffing jib lengths are 24m, 30m, 36m, 42m, 48m, 54m, 60m respectively
Can be installed on the main arm with a length of 26m~62m

Boom Tip Pulley

Welded structure, connected to the main arm through a pin shaft, used for auxiliary hook operation.

Hook Specifications

Hook Name	Maxi Lifting Weight (t)	Amount	Number of Pulleys	Unit Weight (t)
300t Hook	300	1	11	5.85
200t Hook	200	1	9	3.69
100t Hook	100	1	3	2.3
50t Hook	50	1	51	1.7
16t Hook	16	1	-	0.9

Safety and Control Features

Installation/working mode switch: In installation mode, some safety devices are not functional to facilitate crane installation; in working mode, all safety limit devices are functional
Emergency stop: In an emergency, pressing the emergency stop button can cut off the power supply of the entire machine and stop all actions
Torque limiter: An independent safety control system completely controlled by a computer that automatically detects weight, working radius, and boom angle, displaying rated load, actual load, working radius and boom angle. Can intelligently judge and automatically cut off dangerous directions, with black box function to record overload lifting information
Main and auxiliary lifting anti-overwinding device: Composed of a limit switch and heavy hammer to prevent lifting hook overlifting. Activates buzzer and cuts off lifting action when upper limit is reached
Main and auxiliary lifting over-release prevention device: Prevents wire rope over-release by activating proximity switch when near last three turns, triggering system alarm and automatically cutting off lowering action
Function lock: Prevents misoperation by making all function operating handles invalid when the function lock handle is not in place
