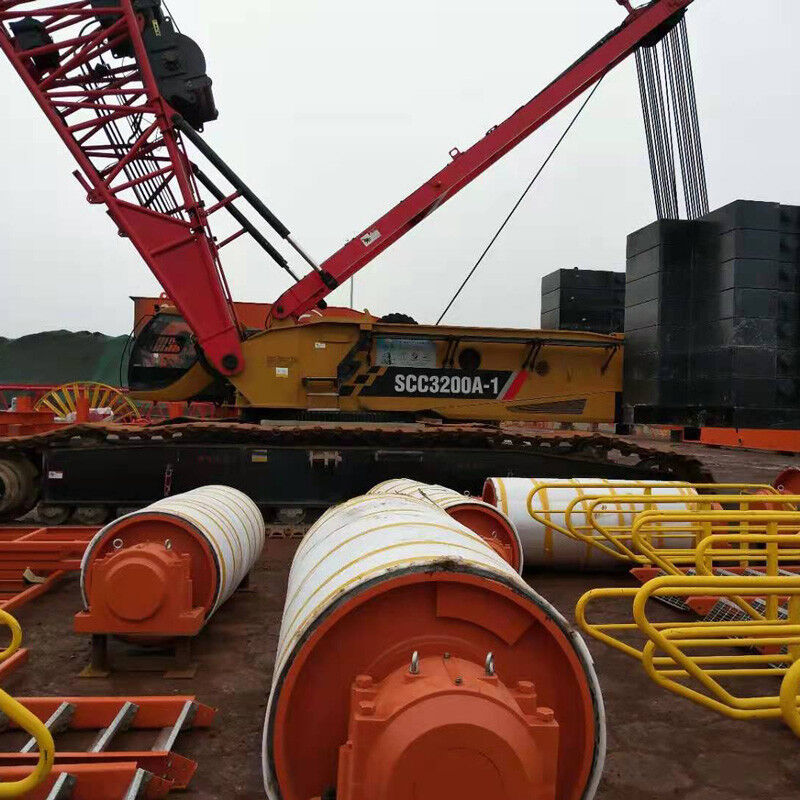

SCC3200A-1 Used Crawler Crane 60m Boom Crawler Telescopic Crane

SCC3200A-1 Used Crawler Crane 60m Boom Crawler Telescopic Crane

SCC3200A-1 Used Crawler Crane 60m Boom Crawler Telescopic Crane

Brand Name: SANY
Model Number: SCC3200A-1
MOQ: One Crane
Price: 200,000-6,000,000 RMB per unit
Payment Terms: L/C,T/T
Supply Ability: Supply According to Customer Needs
Detail Information
Product Description
Detail Information
Place of Origin:
China
Maximum Gradeability:
40%
Boom Length:
60 Meters
Application:
Construction Lifting
Jib Length:
90 Meters
Maximum Working Radius:
100 Meters
Maximum Lifting Height:
120 Meters
Hydraulic Cylinder Brand:
Sany
Used Crane:
Sany Crawler Crane
Packaging Details:
Packing According to Customer Requirements
Highlight:

SCC3200A-1 Used Crawler Crane

,

Used Crawler Crane 60m Boom

,

60m Boom Crawler Telescopic Crane

Product Description
SCC3200A-1 Used Crawler Crane For Sale 1820t·M 86m Main Boom
Used Crawler Cranes That Can Operate In Harsh Construction Environments
SCC3200A-1 Crawler Crane Technical Specifications
Maxi rated load: 320t
Max lifting moment: 1820t*m
Longest main boom: 86m
Longest fixed jib condition: 62m+42m
Longest luffing jib working condition: 62m+60m
Main and Auxiliary Lifting Mechanism
  • Pump and motor: dual variable speed regulation, high efficiency and energy saving
  • Winches brake: normally closed, built-in, wet, spring-loaded disc brake
  • Variable hydraulic motor drives planetary gear reducer for precise control
  • Automatic displacement adjustment based on load for maximum winch speed
  • High-quality anti-rotation wire rope for enhanced safety and durability
  • Precision folding line machine-added drum with reliable multi-layer winding
  • Bag-type rope head for easy wire rope disassembly and assembly
Main Lifting Mechanism
Outermost working layer rope speed 0~120m/min
Wire rope diameter 26mm
Main lifting wire rope length 650m
Rated single rope tension 15t
Auxiliary Lifting Mechanism
Outermost working layer rope speed 0~120m/min
Wire rope diameter 26mm
Auxiliary lifting wire rope length 390m
Rated single rope tension 15t
Luffing Mechanism
  • Includes main boom and auxiliary jib luffing mechanisms
  • Folding drum design with hydraulic motor drive through planetary reducer
  • Capable of multiple compound actions with excellent micro-speed performance
Main Luffing Mechanism
Outermost working layer rope speed 130m/min
Wire rope diameter 28mm
Main luffing wire rope length 345m
Auxiliary Luffing Mechanism
Outermost working layer rope speed 0~100m/min
Wire rope diameter 20mm
Auxiliary luffing wire rope length 410m
Slewing Mechanism
  • Normally closed, built-in, wet, spring-loaded disc brake
  • Integrated slewing buffer valve with free sliding function
  • Unique slewing buffer design for stable braking
  • External meshing slewing drive with 360° rotation capability
  • Cylinder locking device for secure positioning after work or transportation
  • Three-row roller external gear slewing bearing
Counterweight System
  • Combined counterweight design for easy assembly/disassembly
  • Self-loading/unloading capability for convenient transportation
  • Pallet and counterweight stacking method for efficient handling
Name Amount Length (m) Width (m) Height (m) Unit weight (t)
Central weight 2 5.68 1.72 0.582 20
Main engine rear weight 14 2.68 2.38 0.49 8
Counterweight tray behind the main engine 1 8.06 2.68 0.49 12
Upper Structure
High-strength steel welded frame structure with no deformation or torsion. Features a rational layout of components for easy maintenance and service.
