| Brand Name: | XCMG |

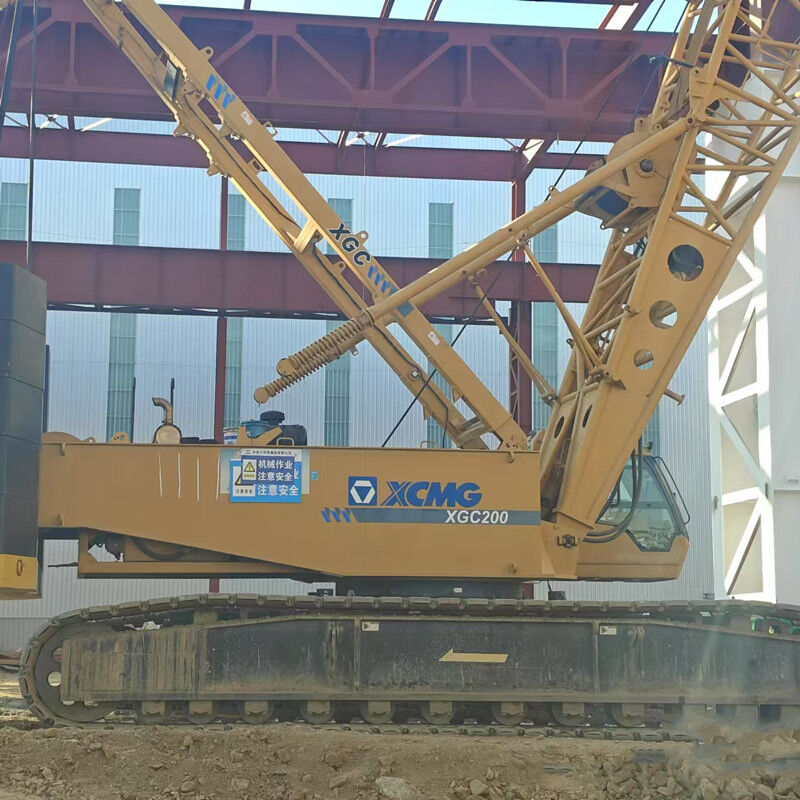

| Model Number: | XGC200 |
| MOQ: | One Crane |
| Price: | 200,000-6,000,000 RMB per unit |
| Payment Terms: | L/C,T/T |
| Supply Ability: | Supply According to Customer Needs |
| No. | Name | Model |
|---|---|---|
| 1 | Engine | SC9DF330G3 |
| 2 | Hydraulic system |
Main winch
Reducer: QBL800
Motor: L6VM160
Balance valve: 538.060.005.9B
Auxiliary winch
Reducer: QBL800
Motor: L6VM160
Balance valve: 538.060.005.9B
Luffing winch
Reducer: QBL1000
Motor: A2FE107
Balance valve: 08.45.38.13.73.35.00D
Slewing
Reducer: HS200
Motor: A2FE45
Traveling
Reducer: XBL3600
Motor: L6VE160
Main pump: L8VO140
Main valve: 5MHPCV160
|
| 3 | Electrical System | Torque limiter: HD-5MWVL36 |
| 4 | Slewing bearing | DQNA2000 |
| 5 | Hook | 160t/80t/32t/13.5t |
| Project | Unit | Value |
|---|---|---|
| Max rated lifting capacity | ||
| Main boom working condition | t | 200 |
| Fixed jib working condition | t | 33.5 |
| Luffing jib working condition | t | 50 |
| Single pulley at arm end working condition | t | 13.5 |
| Max lifting moment | t.m | 1043.8 |
| Size parameters | ||
| Main boom length | m | 19～82 |
| Fixed jib length | m | 13～31 |
| Single pulley at arm end condition | m | 1.4 |
| Speed Parameters | ||
| Max lifting speed of single rope | m/min | 120 |
| Max single rope speed of main boom luffing | m/min | 2×34 |
| Max slewing speed | rpm | 1.5 |
| Maximum traveling speed | km/h | 1.3 |
| Engine | ||
| Rated Power | kW | 243 |
| Emission standards | -- | -- |
| Machine specifications | ||
| Machine weight (based on 19m basic boom, 160t hook) | t | 176 |
| Average ground pressure | MPa | 0.112 |
| Gradeability | -- | 30% |
| Max single piece shipping weight | t | 30 |
| Max single piece transport dimensions (length x width x height) | m | 9.58×3.0×3.3 |
