Home / Products / 150T Crawler Crane /

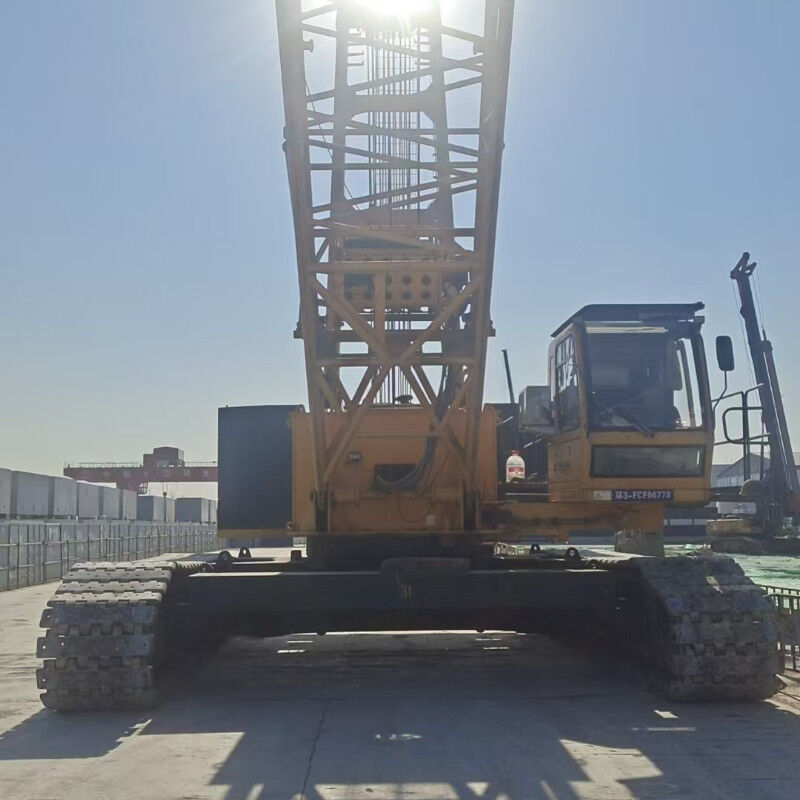

150000kg Second Hand Crawler Cranes 150T Crawler Crane XGC150

150000kg Second Hand Crawler Cranes 150T Crawler Crane XGC150

150000kg Second Hand Crawler Cranes 150T Crawler Crane XGC150

Brand Name: XCMG
Model Number: XGC150-I
MOQ: One Crane
Price: 200,000-6,000,000 RMB per unit
Payment Terms: L/C,T/T
Supply Ability: Supply According to Customer Needs
Detail Information
Product Description
Detail Information
Place of Origin:
China
Jib Length:
9-18m
Model:
XGC150
Slewing Speed:
0-2.5rpm
Gradeability:
30%
Travel Speed:
1.2km/h
Hoisting Speed:
0-120m/min
Maximum Lifting Capacity:
150 Tons
Maximum Lifting Height:
84m
Boom Length:
13-60m
Maximum Lifting Radius:
70m
Operating Weight:
150,000kg
Engine Power:
298kW
Packaging Details:
Packing According to Customer Requirements
Highlight:

150000kg Second Hand Crawler Cranes

,

Second Hand Crawler Cranes 150T

,

150T Crawler Crane XGC150

Product Description
XCMG Reliable 150T Second hand Crawler Cranes Lifting Equipment
Product Overview
The XGC150-I Crawler Crane is a robust 150-ton capacity lifting solution offering exceptional performance and reliability for heavy-duty applications.
Technical Specifications
Model XGC150-I
Maximum Rated Lifting Capacity 150t
Maximum Rated Lifting Moment 790.8t.m
Key Mechanisms
Lifting Mechanism
  • Motor-driven planetary gear reducer system
  • Operates main/auxiliary hooks via drum and pulley set
  • Built-in planetary reducer with fail-safe "spring brake/hydraulic release" function
  • High breaking force wire rope (φ26mm diameter)
Luffing Mechanism
  • Motor-driven planetary gear reducer for main arm adjustment
  • Fail-safe "spring brake/hydraulic release" brake system
  • Hydraulic ratchet locking device for multiple protection
  • High breaking force wire rope (φ22mm diameter)
Slewing Mechanism
  • Internal meshing drive with 360° rotation capability
  • High-safety braking system with "spring brake/hydraulic release"
  • Mechanical slewing locking device for additional protection
  • Free sliding function for operational flexibility
Slewing Bearing
Features exceptional load-bearing capacity, minimal resistance, wear resistance, and extended service life.
Cylinder Assembly
  • Power pin connections for critical joints (boom/turntable, frame/crawler beam)
  • Includes mast lifting cylinder, optional counterweight lifting cylinder
  • Outrigger cylinder for crawler frame assembly/disassembly
  • Driver's cab equipped with flip and rotation cylinders
Control Room
Ergonomically designed with bionic features, offering wide visibility and comfortable operation.
Frame Construction
Box-type radial structure welded from high-strength steel plates, delivering superior rigidity and structural integrity.
