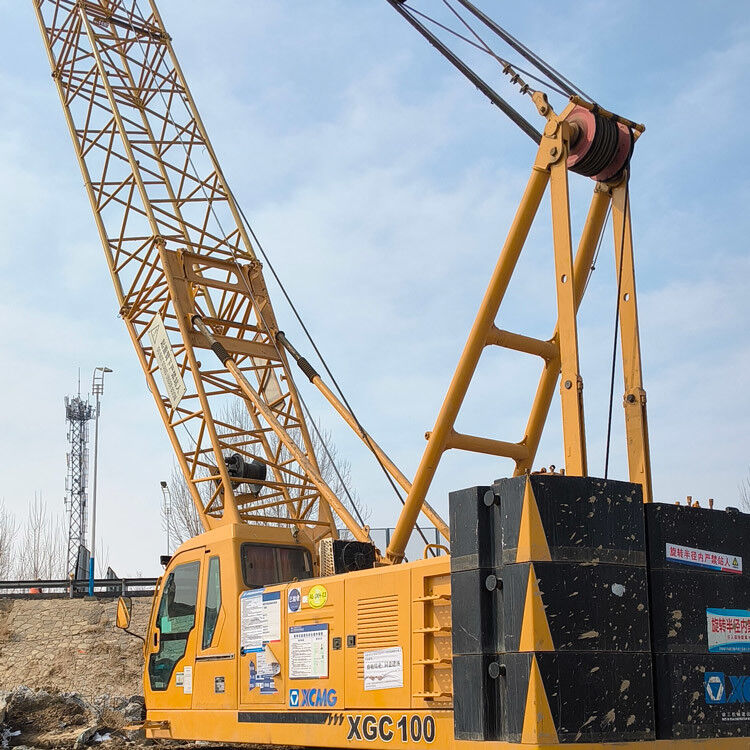

Urban Construction Used Crawler Cranes Xcmg Crawler Cranes Second Hand

Urban Construction Used Crawler Cranes Xcmg Crawler Cranes Second Hand

Urban Construction Used Crawler Cranes Xcmg Crawler Cranes Second Hand

Brand Name:	XCMG
Model Number:	XGC100A
MOQ:	One Crane
Price:	200,000-6,000,000 RMB per unit
Payment Terms:	L/C,T/T
Supply Ability:	Supply According to Customer Needs

Detail Information

Product Description

Detail Information

Place of Origin:

China

Max Travel Speed:

1.5km/h

Max Working Radius:

50m

Jib Length:

18m

Max Lifting Capacity:

100 Tons

Max Lifting Height:

80m

Model:

XGC100

Slewing Speed:

0.7rpm

Boom Length:

61m

Max Gradeability:

30%

Engine Power:

298kW

Packaging Details:

Packing According to Customer Requirements

Highlight:

Urban Construction Used Crawler Cranes

,

Used Crawler Cranes Xcmg

,

Xcmg Crawler Cranes Second Hand

Product Description

Second Hand XCMG Crawler Cranes 100T In Urban Construction

Second-hand 100T Crawler Crane With Many Applications In Urban Construction

XGC100A Crawler Crane Technical Specifications

Crawler crane models: XGC100A
Max rated lifting capacity: 100t/4m
Max rated lifting moment: 425 t.m
The longest combination of main boom working conditions: 61 m
The longest combination of single pulley working condition at the main boom end: Boom 61 m+Single pulley at arm end 1.1 m
The longest combination of fixed jib working conditions: Boom 52 m +fixed jib 19 m
Max transportation weight per piece: 24.1t
Max transport width per piece: 3.4m
Max transport height per piece: 3.04m

Typical Working Condition Lifting Performance

Table 5-1 XGC100A Fixed jib 7m Performance table - 30° installation angle (without main boom hook) Unit: t Counterweight 34t

Radius(m)	31	34	37	40	43	46	49	52
12	10.7	10.9	11.0
14	10.1	10.3	10.5	10.6	8.0	8.0
16	9.6	9.8	10.0	10.1	8.0	8.0	8.0	8.0
18	9.2	9.4	9.5	9.7	8.0	8.0	8.0	8.0
20	8.8	9.0	9.2	9.3	8.0	8.0	8.0	8.0
22	8.4	8.6	8.8	9.0	8.0	8.0	8.0	8.0
24	8.1	8.3	8.5	8.7	8.0	8.0	8.0	8.0
26	7.9	8.1	8.3	8.4	8.0	8.0	8.0	8.0
28	7.7	7.8	7.8	7.7	7.6	7.5	7.4	7.2
30	7.3	7.1	7.0	6.9	6.8	6.7	6.6	6.4
32	6.6	6.5	6.4	6.2	6.1	6.0	5.9	5.7
34		5.9	5.8	5.6	5.5	5.4	5.3	5.1
36			5.2	5.1	5.0	4.9	4.8	4.6
38				4.6	4.5	4.4	4.3	4.1
40					4.1	4.0	3.9	3.7
42						3.6	3.5	3.3
44							3.1	3.0
46								2.7
48								2.4

Table 5-2 XGC100A Fixed jib 13m Performance table - 30° installation angle (without main boom hook) Unit: t Counterweight 34t

Radius(m)	31	34	37	40	43	46	49	52
16	6.1	6.2	6.3
18	5.8	5.9	6.0	6.4	6.4	6.5	6.6
20	5.4	5.6	5.7	6.0	6.1	6.2	6.3	6.4
22	5.2	5.3	5.4	5.7	5.8	5.9	6.0	6.1
24	4.9	5.0	5.1	5.5	5.6	5.7	5.8	5.8
26	4.7	4.8	4.9	5.2	5.3	5.4	5.5	5.6
28	4.5	4.6	4.7	5.0	5.1	5.2	5.3	5.4
30	4.3	4.5	4.6	4.8	4.9	5.0	5.1	5.2
32	4.2	4.3	4.4	4.7	4.8	4.9	5.0	5.0
34	4.1	4.2	4.3	4.5	4.6	4.7	4.8	4.9
36	4.0	4.1	4.1	4.4	4.5	4.6	4.7	4.7
38		4.0	4.0	4.3	4.4	4.4	4.5	4.5
40		3.9	3.9	4.2	4.2	4.3	4.2	4.0
42			3.9	4.1	4.0	3.9	3.8	3.6
44				3.8	3.6	3.5	3.4	3.3
46					3.3	3.2	3.1	3.0
48						2.9	2.8	2.7
50							2.5	2.4
52								2.1
54								1.9

Table 5-3 XGC100A Fixed jib 19m Performance table - 30° installation angle (without main boom hook) Unit: t Counterweight 34t

3.6

Radius(m)	31	34	37	40	43	46	49	52
20	3.8	3.8	3.8	3.9
22	3.6	3.7	3.7	3.7	3.8	3.8	3.8	3.8
24	3.5	3.5	3.6	3.6	3.6	3.7	3.7	3.7
26	3.3	3.4	3.5	3.5	3.5	3.6	3.6
28	3.2	3.3	3.3	3.4	3.4	3.5	3.5	3.5
30	3.1	3.2	3.2	3.3	3.3	3.4	3.4	3.4
32	3.0	3.1	3.1	3.2	3.2	3.3	3.3	3.3
34	2.9	3.0	3.0	3.1	3.2	3.2	3.2	3.3
36	2.8	2.9	3.0	3.0	3.1	3.1	3.2	3.2
38	2.7	2.8	2.9	2.9	3.0	3.0	3.1	3.1
40	2.6	2.7	2.8	2.8	2.9	3.0	3.0	3.1
42	2.6	2.7	2.7	2.8	2.8	2.9	2.9	3.0
44		2.6	2.7	2.7	2.8	2.8	2.9	2.9
46		2.5	2.6	2.7	2.7	2.8	2.8	2.9
48			2.5	2.6	2.极6	2.7	2.7	2.8
50				2.5	2.6	2.6	2.7	2.6
52					2.5	2.6	2.5	2.3
54						2.3	2.2	2.1
56							2.0	1.9
58								1.7
