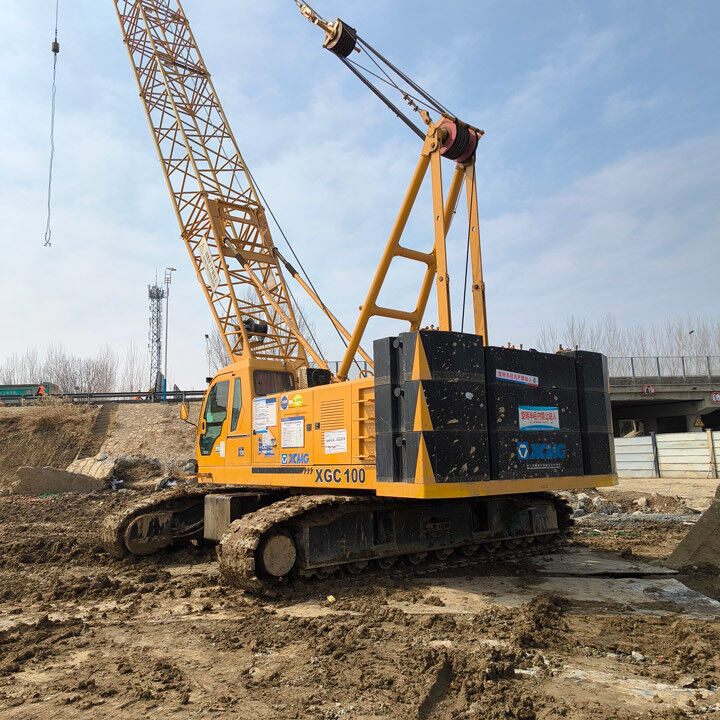

13.5m-61m Boom 100T Mobile Crawler Crane Used In Warehousing Logistics

Name: 13.5m-61m Boom 100T Mobile Crawler Crane Used In Warehousing Logistics
Brand: Shandong Tengfei Hoisting Engineering Co., Ltd.
SKU: XGC100A
Price: 103.00 USD
Availability: InStock

Brand Name:	XCMG
Model Number:	XGC100A
MOQ:	One Crane
Price:	200,000-6,000,000 RMB per unit
Payment Terms:	L/C,T/T
Supply Ability:	Supply According to Customer Needs

Detail Information

Product Description

Detail Information

Place of Origin:

China

Max. Working Radius:

60m

Boom Length:

13.5m - 61m

Hoist Speed:

110m/min

Engine Power:

242kW

Max. Travel Speed:

1.5km/h

Max. Gradeability:

30%

Slewing Speed:

1.5rpm

Max. Lifting Capacity:

100 Tons

Operating Weight:

100 Tons

Jib Length:

9m - 18m

Max. Lifting Height:

79m

Counterweight:

28.5 Tons

Packaging Details:

Packing According to Customer Requirements

Highlight:

100T Mobile Crawler Crane Used

Warehousing Logistics Crawler Crane Used

61m Boom Crawler Crane Used

Product Description

Used 100T Mobile Crawler Crane In Warehousing Logistics 1.5km/H Travel Speed

Used 100T Crawler Crane for Warehousing Logistics Applications

XGC100A Crawler Crane Technical Specifications

Crawler crane models: XGC100A

Max rated lifting capacity: 100t/4m

Max rated lifting moment: 425 t.m

The longest combination of main boom working conditions: 61 m

The longest combination of single pulley working condition at the main boom end: Boom 61 m+Single pulley at arm end 1.1 m

The longest combination of fixed jib working conditions: Boom 52 m +fixed jib 19 m

Max transportation weight per piece: 24.1t

Max transport width per piece: 3.4m

Max transport height per piece: 3.04m

Typical Working Condition Lifting Performance

Table 4-1 XGC100A Fixed jib 7m Performance table - 10° installation angle (without main boom hook) Unit: t Counterweight 34t

Radius(m)	31	34	37	40	43	46	49	52
9	12.0
10	12.0	12.0	12.0
12	12.0	12.0	12.0	12.0	8.0	8.0	8.0
14	12.0	12.0	12.0	12.0	8.0	8.0	8.0	8.0
16	12.0	12.0	12.0	12.0	8.0	8.0	8.0	8.0
18	12.0	12.0	12.0	12.0	8.0	8.0	8.0	8.0
20	11.3	11.8	12.0	12.0	8.0	8.0	8.0	8.0
22	10.5	11.0	10.9	10.8	8.0	8.0	8.0	8.0
24	9.9	9.8	9.6	9.5	8.0	8.0	8.0	8.0
26	8.9	8.7	8.6	8.5	8.0	8.0	8.0	7.9
28	8.0	7.8	7.7	7.6	7.4	7.3	7.2	7.0
30	7.2	7.0	6.9	6.8	6.6	6.5	6.4	6.2
32	6.5	6.4	6.3	6.1	6.0	5.9	5.7	5.6
34	5.9	5.8	5.7	5.6	5.4	5.3	5.1	5.0
36		5.3	5.2	5.0	4.9	4.8	4.6	4.5
38			4.7	4.6	4.4	4.3	4.2	4.0
40			4.3	4.2	4.0	3.9	3.8	3.6
42				3.8	3.6	3.5	3.4	3.2
44					3.3	3.2	3.1	2.9
46						2.9	2.8	2.6
48							2.5	2.3
50							2.2	2.1
52								1.8

Table 4-2 XGC100A Fixed jib 13m Performance table - 10° installation angle (without main boom hook) Unit: t Counterweight 34t

Radius(m)	31	34	37	40	43	46	49	52
12	10.2	10.3	8.0
14	9.7	9.8	8.0	8.0	8.0	8.0
16	9.2	9.3	8.0	8.0	8.0	8.0	8.0	8.0
18	8.4	8.8	8.0	8.0	8.0	8.0	8.0	8.0
20	7.7	8.0	8.0	8.0	8.0	8.0	8.0	8.0
22	7.1	7.4	8.0	8.0	8.0	8.0	8.0	8.0
24	6.6	6.9	7.6	8.0	8.0	8.0	8.0	8.0
26	6.1	6.4	7.1	7.4	7.7	8.0	8.0	8.0
28	5.7	6.0	6.6	6.9	7.2	7.5	7.4	7.3
30	5.4	5.6	6.2	6.5	6.8	6.8	6.6	6.5
32	5.1	5.3	5.9	6.1	6.2	6.1	6.0	5.8
34	4.8	5.0	5.5	5.8	5.6	5.5	5.4	5.2
36	4.6	4.8	5.3	5.3	5.1	5.0	4.9	4.7
38	4.3	4.6	4.9	4.8	4.6	4.5	4.4	4.2
40	4.2	4.4	4.5	4.4	4.2	4.1	4.0	3.8
42		4.2	4.1	4.0	3.8	3.7	3.6	3.4
44			3.8	3.7	3.5	3.4	3.3	3.1
46				3.4	3.2	3.1	3.0	2.8
48				3.1	2.9	2.8	2.7	2.5
50					2.7	2.5	2.4	2.3
52						2.3	2.2	2.0
54							2.0	1.8
56							1.7	1.6
58								1.4

Table 4-3 XGC100A Fixed jib 19m Performance table - 10° installation angle (without main boom hook) Unit: t Counterweight 34t

Radius(m)	31	34	37	40	43	46	49	52
14	6.0	6.1	6.1	6.1
16	5.6	5.7	5.8	5.8	5.9	5.9	5.9	5.8
18	5.3	5.4	5.5	5.6	5.6	5.6	5.6	5.6
20	5.0	5.1	5.2	5.3	5.3	5.4	5.4	5.4
22	4.7	4.9	5.0	5.0	5.1	5.2	5.2	5.2
24	4.5	4.6	4.7	4.8	4.9	4.9	5.0	5.0
26	4.3	4.4	4.5	4.6	4.7	4.7	4.8	4.8
28	4.1	4.2	4.3	4.4	4.5	4.6	4.6	4.7
30	3.9	4.0	4.1	4.2	4.3	4.4	4.4	4.5
32	3.7	3.8	4.0	4.1	4.1	4.2	4.3	4.4
34	3.6	3.7	3.8	3.9	4.0	4.1	4.2	4.2
36	3.4	3.6	3.7	3.8	3.9	3.9	4.0	4.1
38	3.3	3.4	3.5	3.6	3.7	3.8	3.9	4.0
40	3.2	3.3	3.4	3.5	3.6	3.7	3.8	3.8
42	3.0	3.2	3.3	3.4	3.5	3.6	3.7	3.5
44	2.9	3.0	3.2	3.3	3.4	3.5	3.4	3.2
46		2.9	3.0	3.2	3.3	3.2	3.0	2.9
48		2.7	2.9	3.0	3.0	2.9	2.8	2.6
50			2.8	2.9	2.8	2.6	2.5	2.3
52				2.7	2.5	2.4	2.3	2.1
54					2.3	2.2	2.0	1.9
56					2.1	2.0	1.8	1.7
58						1.8	1.7	1.5
60							1.5	1.3
62								1.1
