| Brand Name: | XCMG |
| Model Number: | XGC85 |
| MOQ: | One Crane |
| Price: | 200,000-6,000,000 RMB per unit |
| Payment Terms: | L/C,T/T |
| Supply Ability: | Supply According to Customer Needs |
| Crawler crane models | XGC85 |
| Maximum rated lifting capacity | 85t/4.0m |
| Maximum rated lifting moment | 341t.m |
| The longest combination of main boom working conditions | 58 m |
| The longest combination of single pulley working condition at the main boom end | Boom 58m + Single pulley at arm end 1.1 m |

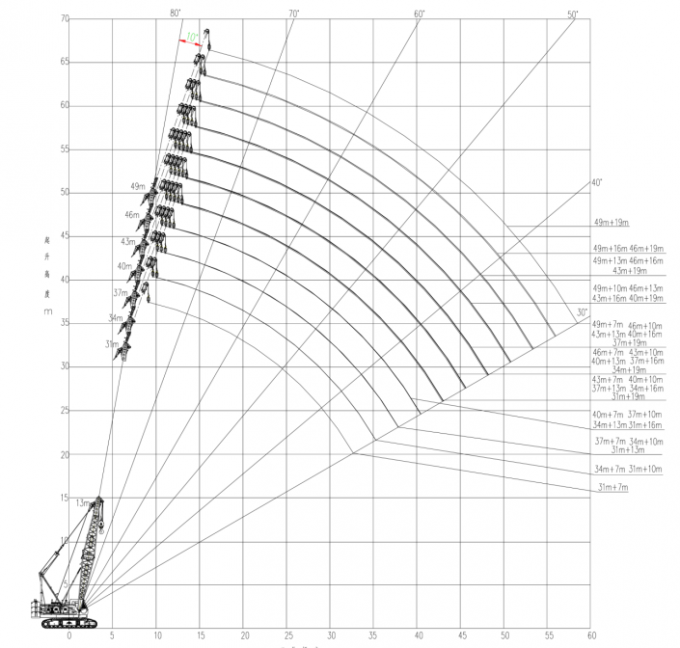

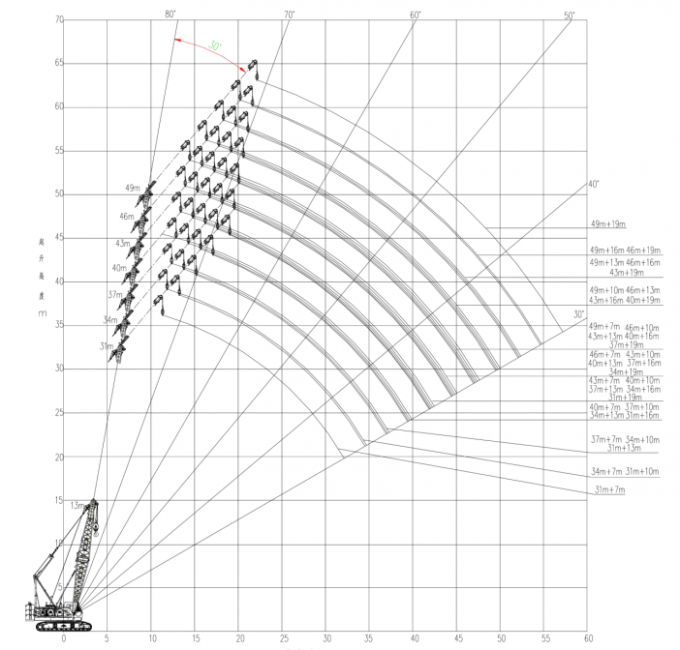

| The longest combination of fixed jib working conditions | Boom 49 m + fixed jib 19 m |
| Max transportation weight per piece | 41.2t |
| Max transport width per piece | 3.3m |
| Max transport height per piece | 3.4m |
