Products
Home / Products / Used Crawler Crane /

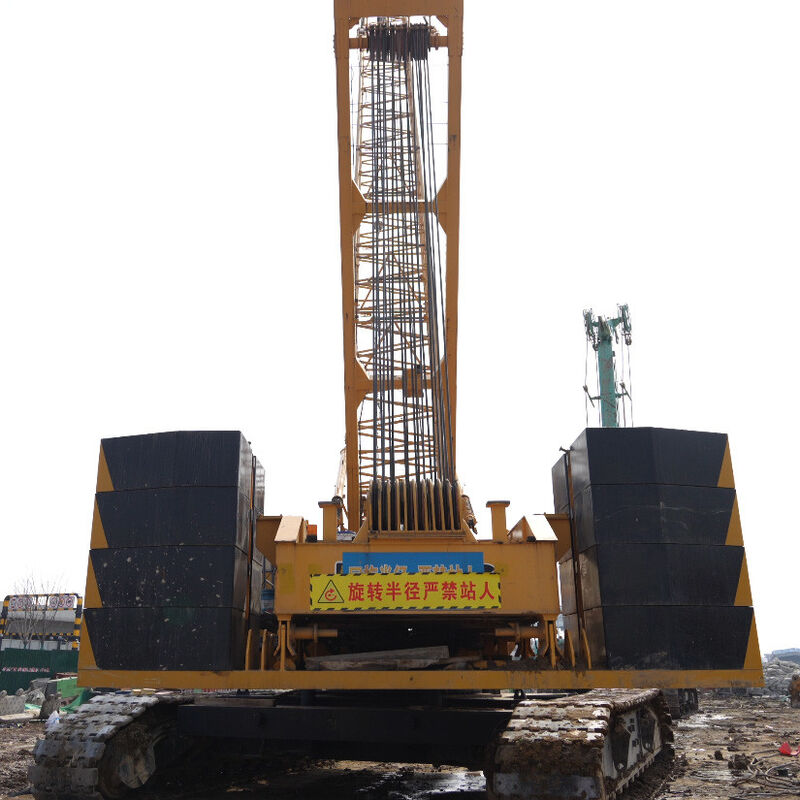

90% New Used Crawler Crane 55000kgs Second Hand Crawler Cranes

90% New Used Crawler Crane 55000kgs Second Hand Crawler Cranes

90% New Used Crawler Crane 55000kgs Second Hand Crawler Cranes

Brand Name: XCMG
Model Number: XGC55
MOQ: One Crane
Price: 200,000-6,000,000 RMB per unit
Payment Terms: L/C,T/T
Supply Ability: Supply According to Customer Needs
Detail Information
Product Description
Detail Information
Place of Origin:
China
Wind Turbine Boom:
106+7m
Crawler Condition:
90% New
Dimensions:
13.5×3.4×3.2m
Gradeability:
30%
Weight With Boom:
61 T
Max Lifting Capacity:
105 T
Travel Speed:
21km/h
System:
Hydraulic
Engine:
200 KW/rpm
Max Travel Speed:
1.2 Km/h
Packaging Details:
Packing According to Customer Requirements
Highlight:

90% New Used Crawler Crane

,

Used Crawler Crane 55000kgs

,

55000kgs Second Hand Crawler Cranes

Product Description
90% New Convenient And Fast Used Crawler Crane / Xcmg 55 Ton Crane 21km/H
55T Crawler Crane Is Widely Used In Mining Operations, Convenient And Fast

This high-performance XGC55 crawler crane delivers exceptional lifting capacity and mobility for demanding mining operations and heavy construction projects.

XGC55 Crawler Crane Technical Specifications
Model XGC55
Maximum Rated Lifting Capacity 55t/3.7m
Maximum Rated Lifting Moment 203.5t.m
Product Components and System Description
Upper Part Components
Luffing Mechanism
  • Planetary gear reducer driven by quantitative hydraulic motor for precise boom control
  • Negative brake design with multiple wet laminated disc normally closed brakes for safety
  • Double-fold multi-layer winding drum made of durable ductile iron for vibration absorption
  • Ratchet locking device with hydraulic cylinder operation for multiple locking protection
  • Special left-handed, cross-twisted wire rope with independent steel core (φ20mm, 103m length)
Slewing Mechanism
  • 360° rotation capability with internal meshing drive system
  • Multi-plate wet laminated normally closed brake for high braking safety
  • Mechanical slewing locking device for additional protection
  • Eccentric mechanism ensures smooth meshing between reducer and slewing bearing
  • Free sliding function prevents lateral force damage to working arm
Slewing Bearing

Elliptical raceway double-row ball design provides large load-bearing capacity with minimal slewing resistance.

Cylinder Assembly
  • Crawler beam telescopic cylinder shares main valve with left walking for convenient operation
  • Smooth action with minimal impact for easy crawler gauge adjustment
  • Main luffing ratchet locking cylinder provides automatic operation for safety and convenience
Control Room
  • Ergonomic bionic design with large glass area for excellent visibility
  • Centered operator controls accessible without standing
  • Includes adjustable seats, air conditioning, power sockets, and radio
  • Wide field of vision with technologically advanced layout
