| Brand Name: | SANY |

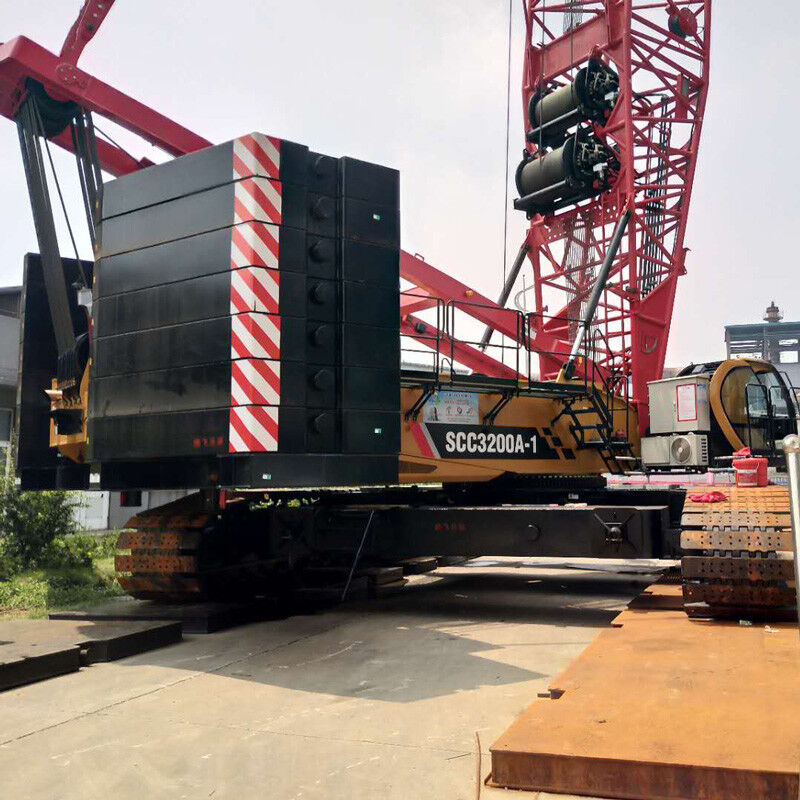

| Model Number: | SCC3200A-1 |
| MOQ: | One Crane |
| Price: | 200,000-6,000,000 RMB per unit |
| Payment Terms: | L/C,T/T |
| Supply Ability: | Supply According to Customer Needs |
| Component | Specification |
|---|---|
| Main pump | Open variable piston pump for main actuator oil source |
| Gear pump | 1 double gear pump for motor control circuits |
| Control | Load sensitive control for main pump, stepless adjustable variable piston motor for winch |
| Cooling method | Air-cooled heat exchanger with fin-type inner core |
| Filter | High flow, high precision with bypass valve and transmitter |
| System maximum pressure | 33Mpa for lifting, variable amplitude, rotation and walking systems |
| Servo pressure | 3.5Mpa |
| Hydraulic oil tank capacity | 815L |
