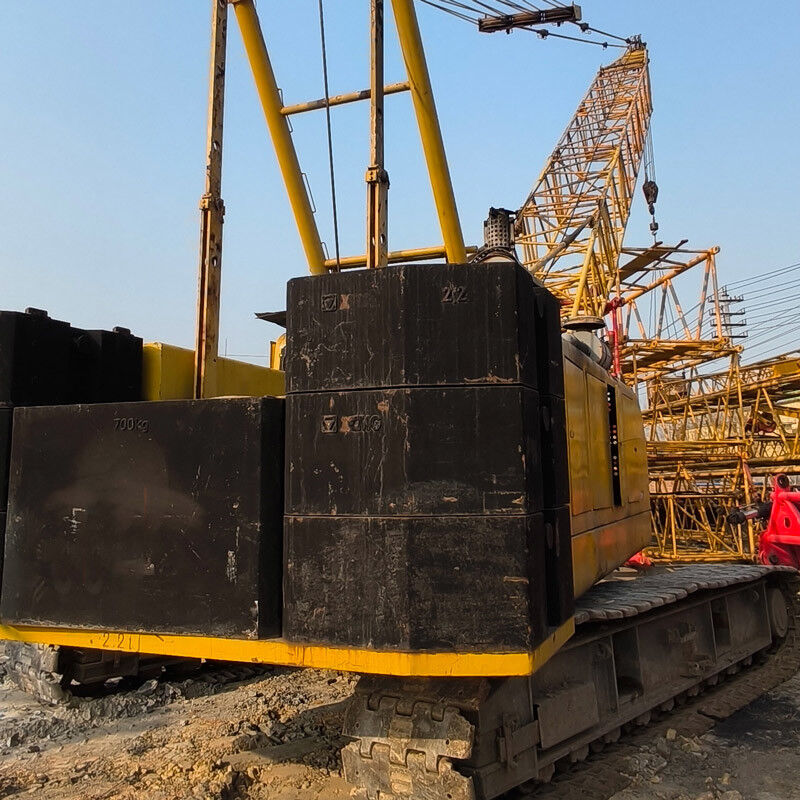

| Brand Name: | SANY |
| Model Number: | SCC6500 |
| MOQ: | One Crane |
| Price: | 200,000-6,000,000 RMB per unit |
| Payment Terms: | L/C,T/T |
| Supply Ability: | Supply According to Customer Needs |
| Performance Indicators | Unit | Parameter |
|---|---|---|
| Max rated lifting capacity | t | 650(6m Working radius) |
| Max rated lifting capacity (with super lift) | t | 642(7m Working radius) |
| Max rated lifting moment | t •m | 4024 |
| Max rated lifting moment (with super lift) | t •m | 7905 |
| Main boom length | m | 24～84 |
| Main boom length (with super lift) | m | 36～108 |
| Hybrid boom length | m | 66～102 |
| Hybrid main boom length (with superlift) | m | 90～138 |
| Luffing jib length | m | 24～84 |
| Length of luffing jib (with superlift) | m | 24～96 |
| Fixed short jib length | m | 12～36 |
| Heavy duty fixed short jib length | m | 12 |
| Longest arm combination (LJDB condition) | m | 96+96/108+60 |
| Main boom luffing angle | ° | 30～85 |
| Jib luffing angle | ° | 15～75 |
| Max rope speed of main reel single rope (outermost working layer) | m/min | 110 |
| Max rope speed of auxiliary reel single rope (outermost working layer) | m/min | 105 |
| Max rope speed of main luffing single rope (outermost working layer) | m/min | 48×2 |
| Max rope speed of auxiliary luffing single rope (outermost working layer) | m/min | 105 |
| Max rope speed of super lifting and luffing single rope (outermost working layer) | m/min | 120 |
| Slewing speed (no load) | r/min | 0.6,1.2(Second gear) |
| Traveling speed | km/h | 0～1.0(High speed)～0.55(Low speed) |
| Gradeability (with basic boom, cab facing rearward) | % | 15 |
| Rated engine output | kW/r/min | 400/2000 |
| Machine weight (basic boom, 190t mainframe counterweight, 80t central weight, with 650t hook) | t | 520 |
| Average ground contact pressure of crawler tracks (basic boom, 180t main machine counterweight, 80t central counterweight, with 650t hook) | MPa | 0.15 |
| Main machine rear weight | t | 190 |
| Super lifting weight | t | 310 |
| Central weight | t | 80 |
| Max single piece transport dimensions (length x width x height) | mm | 12270×3380×3400 |
| Max single piece transport weight | t | 70 |
