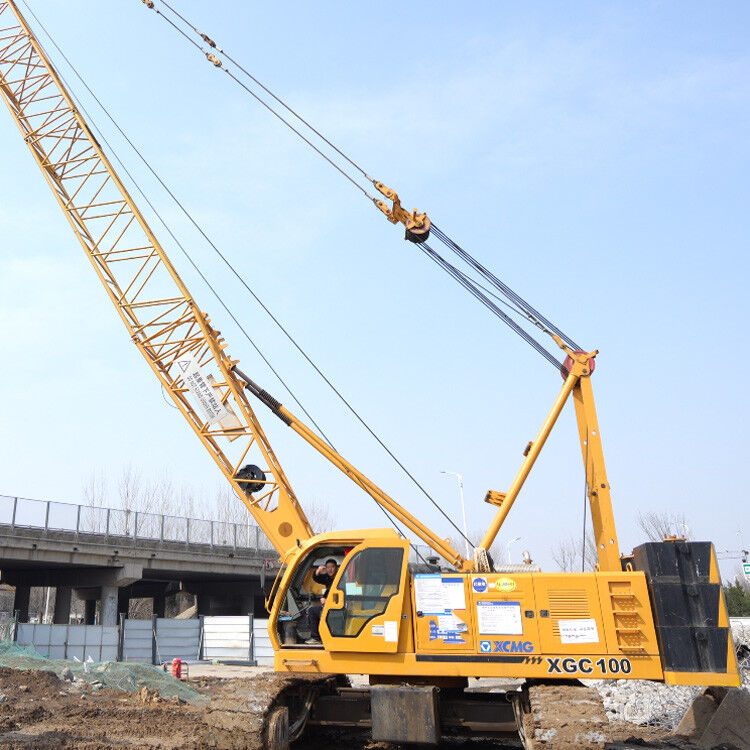

| Brand Name: | XCMG |
| Model Number: | XGC100A |
| MOQ: | One Crane |
| Price: | 200,000-6,000,000 RMB per unit |
| Payment Terms: | L/C,T/T |
| Supply Ability: | Supply According to Customer Needs |
| Project | Unit | Value |
|---|---|---|
| Max rated lifting capacity - Main boom working condition | 100 t | |
| Single pulley at arm end working condition | 8 t | |
| Fixed jib working condition (Without main hook) | 12 t | |
| Max lifting moment - Main boom working condition | 425 t.m | |
| Fixed jib working condition | 242 t.m | |
| Single pulley at arm end working condition | 224 t.m | |
| Size parameters - Main boom length | m | 13～61 |
| Main boom luffing angle | ° | -3～80.5 |
| Fixed jib length | m | 7～19 |
| Angle between main boom and fixed jib | ° | 10,30 |
| Single pulley at arm end | m | 1.1 |
| Max single rope speed of hoisting mechanism | 120 m/min | |
| Max single rope speed of main boom luffing mechanism | 70 m/min | |
| Max slewing speed | 1.8 rpm | |
| Max traveling speed | 1.0 km/h | |
| Engine Model | SC9DF270.4G4 | |
| Engine rated power and speed | 199/1900 kW/rpm | |
| Machine weight (based on 13m basic boom, 100t hook) | 81.2 t | |
| Average ground pressure | 0.079 MPa | |
| Gradeability | 30% | |
| Max single piece shipping weight | 24.1 t | |
| Maximum dimensions of a single piece (turntable) in transport state (length × width × height) | 13.04×3.4×3.04 m | |
